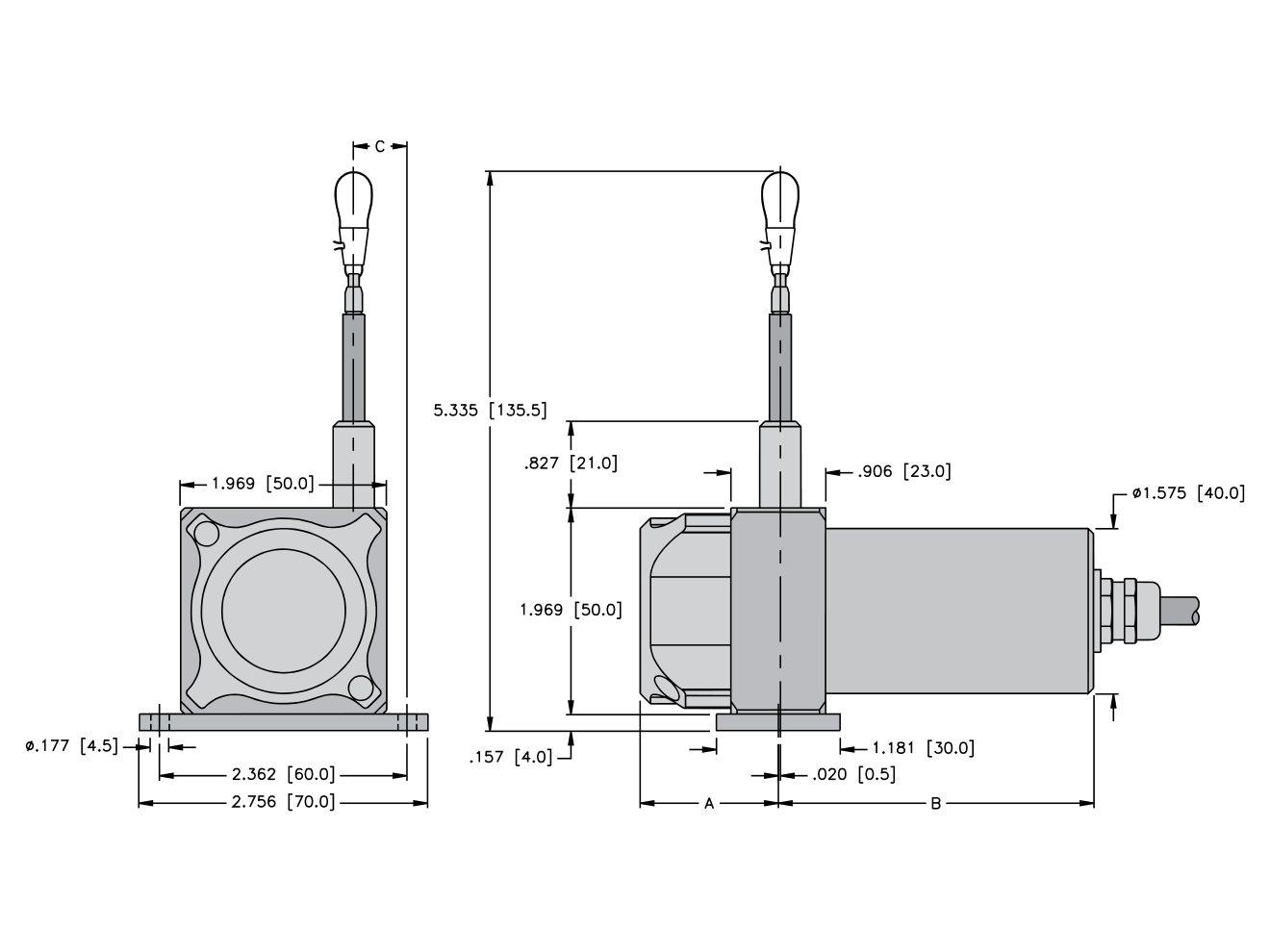

TURCK DW70 Analog Series Draw Wire Position Sensor

Draw wire sensor with analog, current and potentiometer outputs, up to 10 m/s max speed, with measuring ranges up to 1250 mm.

Starting at $1,247.10
This model has 7 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Output:
    • 4 to 20 mA
    • 0 to 10 V
  • Measuring range: 250 to 1250 mm
  • Max speed: 10 m/s (32.8 ft/s) (1250 mm)
  • Linearity: ± 0.1 to 0.15%
  • Extensions force:
    • Fmin: 4.1 N (0.92 lbs)
    • Fmax: 5.4 N (1.21 lbs)
  • Supply voltage: 12 to 30 VDC
  • Operating temperature: -20 to 85°C (-4 to 185°F)
  • Materials:
    • Housing: titanium-anodized aluminum
    • Wire: stainless steel Ø 0.5 mm
  • Reverse polarity protection
  • RoHS compliant

The TURCK DW70 Analog Series Draw Wire Position Sensor is designed for movement tracking applications, with high travel speeds up to 10 m/s and acceleration speeds up to 300 m/s (1250 mm variants only). Measuring lengths are available from 250 to 1250 mm, with 4 to 20 mA or 0 to 10 V outputs. The durable anodized aluminum housing offers reliable protection and operation, with a wide operating temperature range up to -20 to 85°C.
