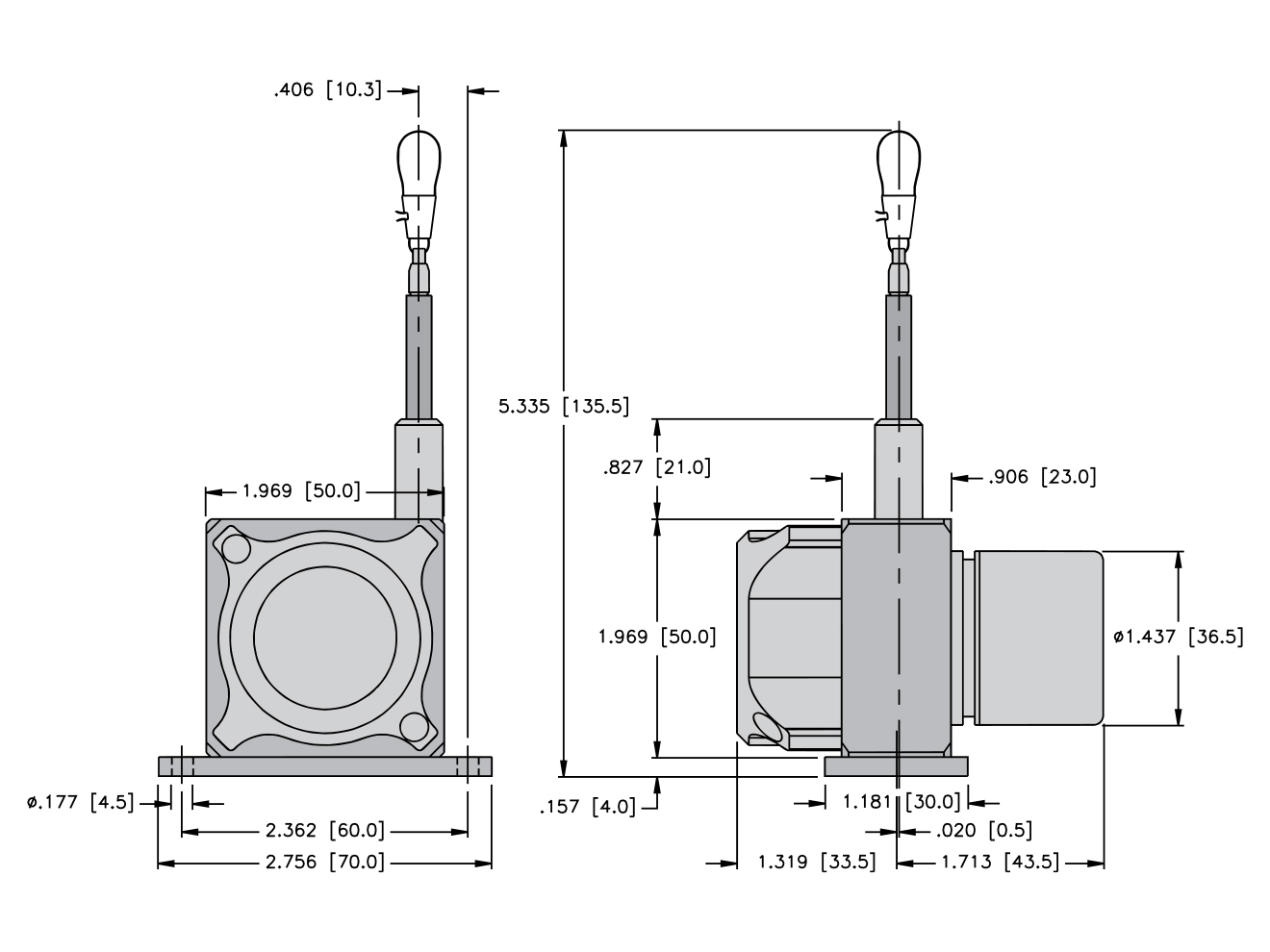

TURCK DW70 Incremental Series Draw Wire Position Sensor

Draw wire sensor with incremental encoder featuring push-pull output. 1250 mm measuring range, with 10 m/s maximum sustained speeds.

Starting at $1,522.40
This model has 2 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Output: push-pull, with inverted signals
  • Measuring range: 1250 mm
  • Resolution: 1250 ppr
  • Max speed: 10 m/s (32.8 ft/s)
  • Linearity: ±0.02%
  • Extensions force:
    • Fmin: 4.1 N (0.92 lbs)
    • Fmax: 5.4 N (1.21 lbs)
  • Supply voltage: 8 to 30 VDC
  • Operating temperature: -20 to 85°C (-4 to 185°F)
  • Materials:
    • Housing: titanium-anodized aluminum
    • Wire: stainless steel Ø 0.5 mm
  • Protective rating: IP65 (encoder only)
  • Reverse polarity protection
  • RoHS compliant

The TURCK DW70 Incremental Series Draw Wire Position Sensor is designed for movement tracking applications with high traveling speeds, with a 1250 mm measuring range, acceleration up to 300 m/s2, and sustained speeds up to 10 m/s. The integrated incremental encoder offers push-pull analog output, with 1250 ppr resolution. The durable anodized aluminum housing offers reliable protection from corrosion, with a wide operating temperature range from -20 to 85°C. Installation is streamlined through a two-screw fastening mount style.
