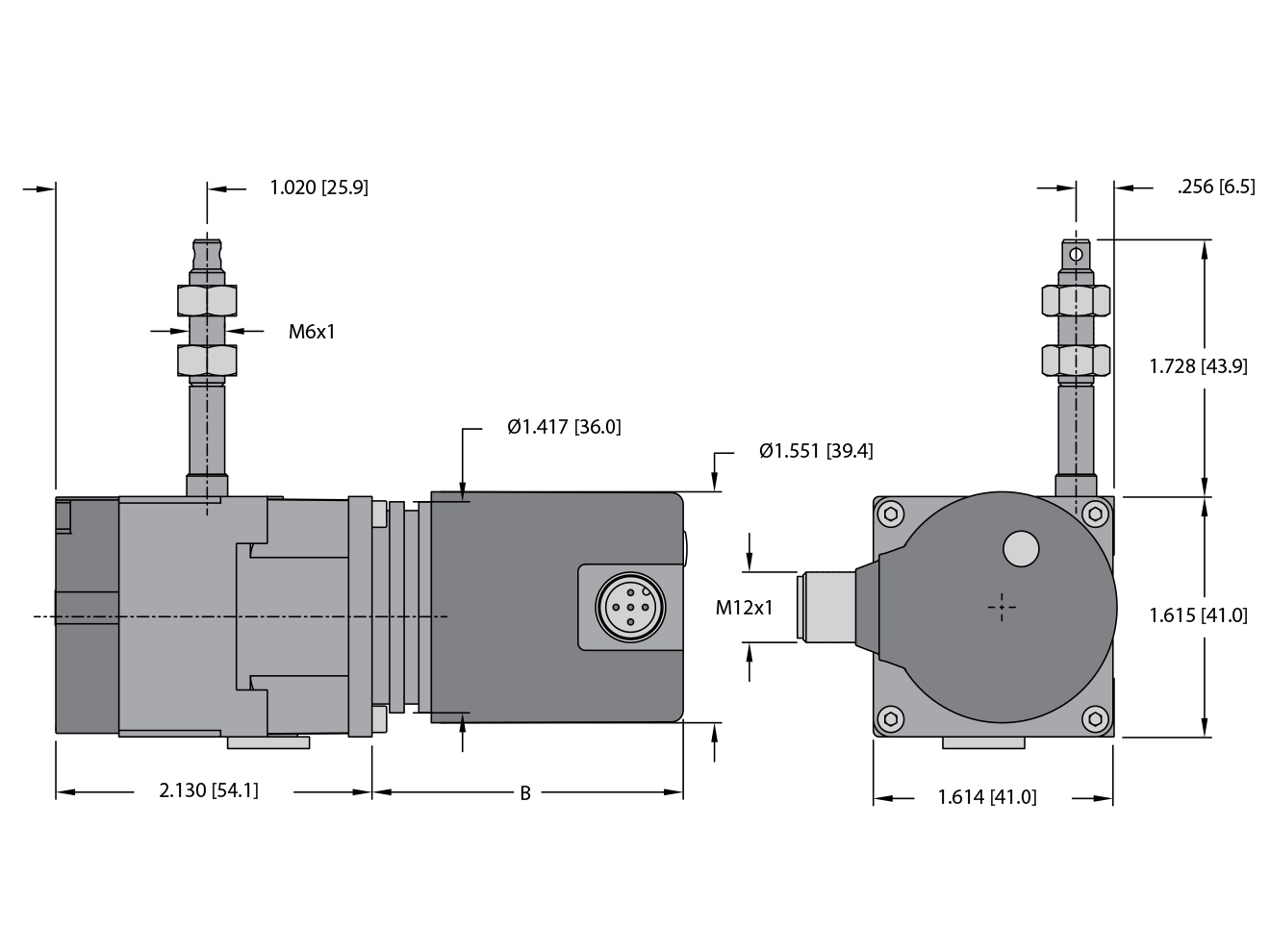

TURCK DW55 Absolute Mini Series Draw Wire Position Sensor

Draw wire sensor with absolute encoder featuring analog, SSI and CANopen variants. 2000 mm measuring range, IP65 rating.

Starting at $1,632.90
This model has 4 variants.
Manufactured
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Output: analog, SSI, CANopen
  • Measuring range: 2000 mm
  • Resolution:
    • Analog: 12 bit
    • SSI: 4096 ppr
    • Fieldbus: CANopen encoder profile DS406 V4.0
  • Max speed: 0.8 m/s (2.62 ft/s)
  • Repeat accuracy: ±0.15 mm
  • Required force: approx. 2.25 lbs (10 N) (on wire)
  • Supply voltage:
    • 10 to 30 VDC
    • 15 to 24 VDC
  • Operating temperature: -10 to 80°C (14 to 176°F)
  • Materials:
    • Housing: reinforced plastic
    • Wire: stainless steel, plastic coated
  • Protective rating: IP65

The TURCK DW55 Absolute Mini Series Draw Wire Position Sensor is designed for movement tracking applications with measuring lengths up to 2000 mm, with an integrated absolute encoder featuring analog, SSI or CANopen interfaces. The durable plastic housing offers reliable protection and operation, with a wide operating temperature range from -10 to 80 °C. Units offer 0.8 m/s max speed, and result repeatability within 0.15 mm.
