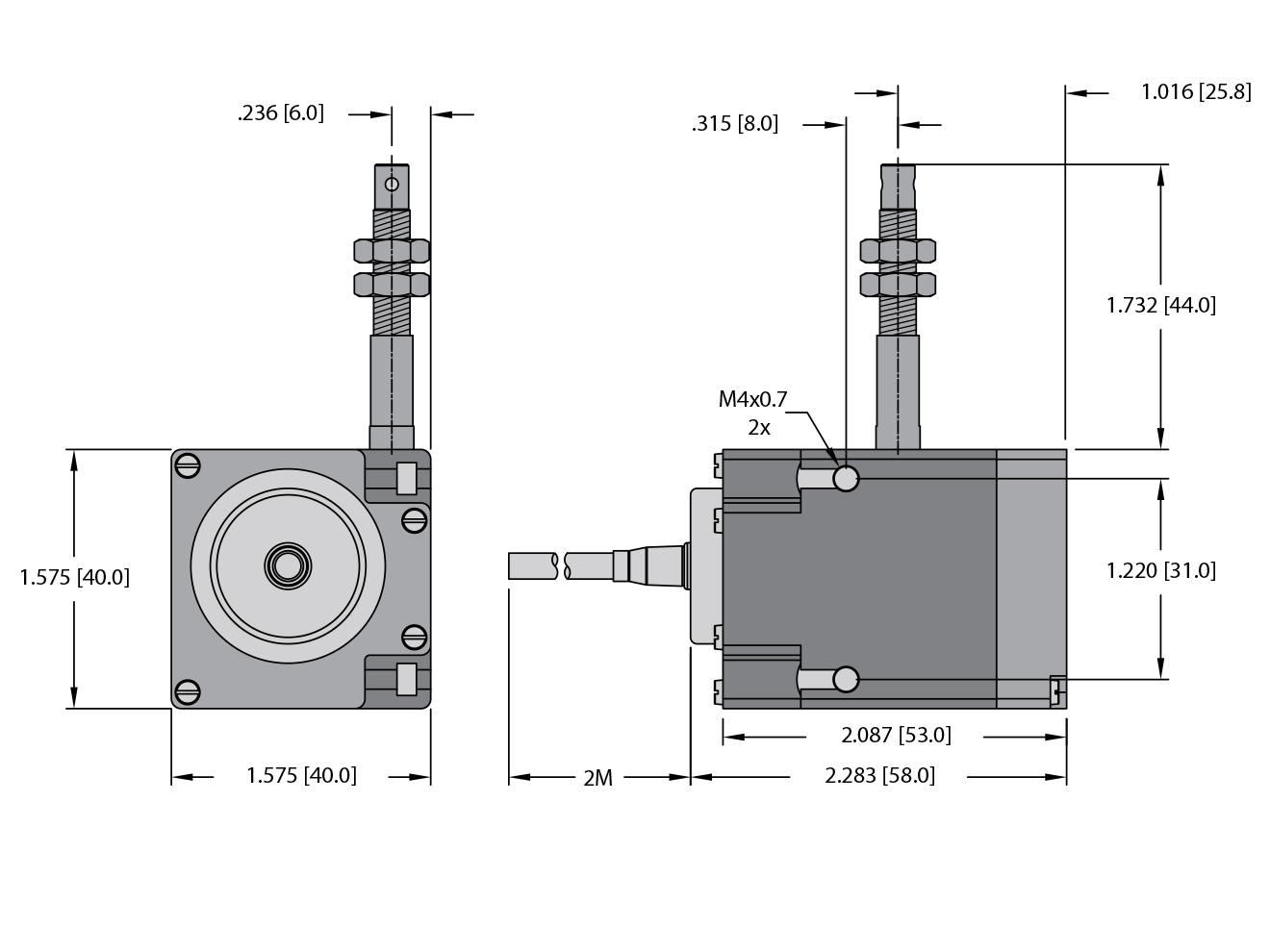

TURCK DW55 Incremental Mini Series Draw Wire Position Sensor

Draw wire sensor with incremental encoder, push-pull outputs. 0.8 m/s speed, with measuring range up to 2000 mm. IP54 protective rating.

Starting at $1,115.50
This model has 2 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Output: push-pull w/ inverted signals
  • Measuring range:
    • 1000 mm
    • 2000 mm
  • Resolution: 0.1 mm (0.025 mm post-quadrature)
    • standard encoder with 1,000 ppr
  • Max speed: 0.8 m/s (2.62 ft/s)
  • Absolute accuracy: ±0.1% for whole measuring range
  • Repeat accuracy: ±0.15 mm
  • Required force: approx. 2.25 lbs (10 N) (on wire)
  • Supply voltage:
    • 8 to 30 VDC
    • 5 to 24 VDC max
  • Operating temperature: -20 to 85 °C (-4 to 185°F)
  • Materials:
    • Housing: reinforced plastic
    • Wire: stainless steel Ø 0.45 mm, plastic coated
  • Shock resistance: 100 g (1,000 m/s2), 6 ms
  • Vibration resistance: 10 g (100 m/s2), 55-2,000 Hz
  • IP54 protective rating

The TURCK DW55 Incremental Mini Series Draw Wire Position Sensor is designed for movement tracking applications with measuring lengths up to 2000 mm, with push-pull outputs. The durable plastic housing offers reliable protection and operation, with a wide operating temperature range from -20 to 80 °C. Units offer 0.8 m/s max speed, and result repeatability within 0.15 mm.
