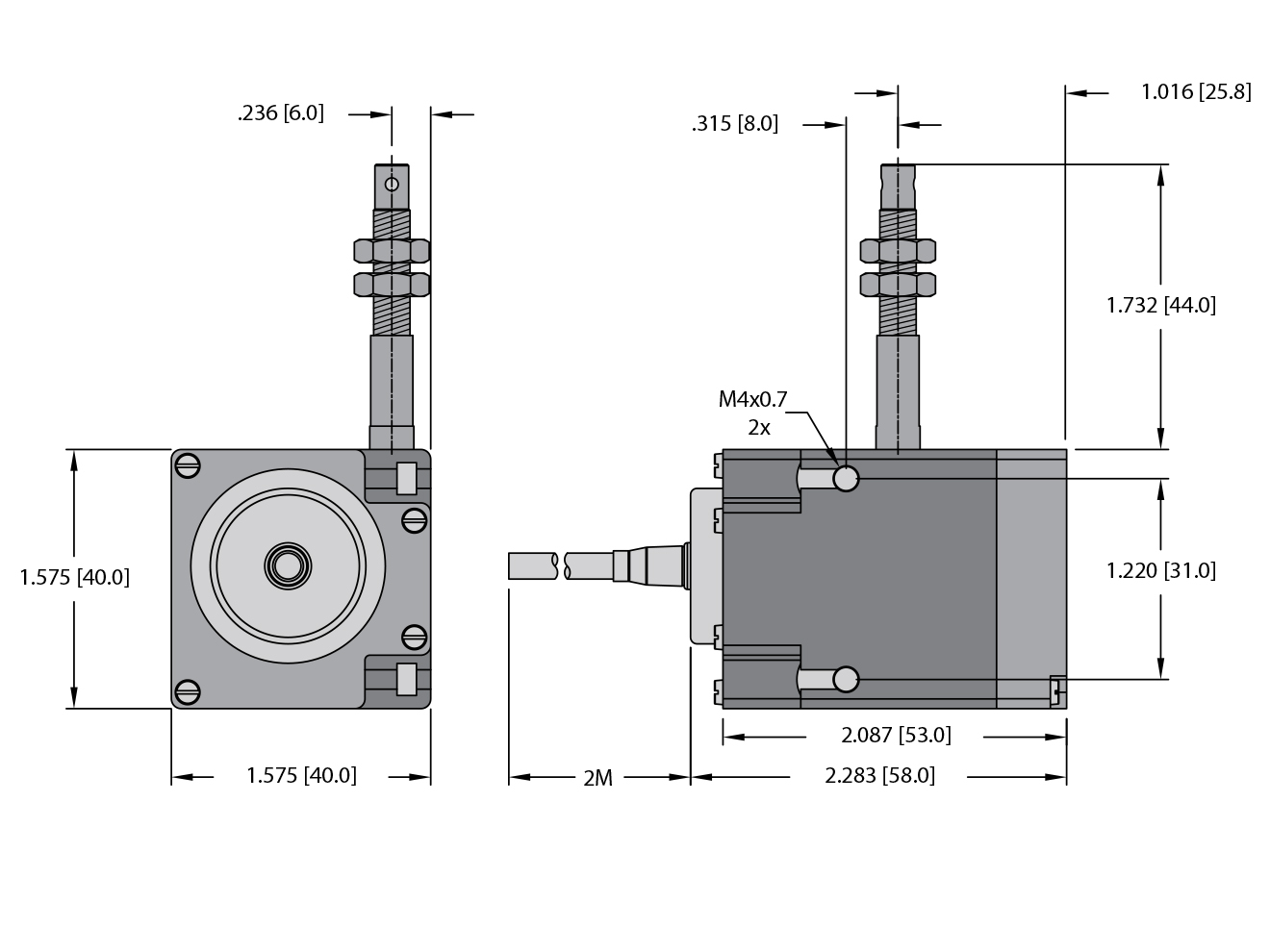

TURCK DW55 Analog Mini Series Draw Wire Position Sensor

Draw wire sensor with analog, current and potentiometer outputs, 1 m/s max speed, with measuring range up to 2000 mm. Up to IP65 rating.

Starting at $653.90
This model has 8 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Output:
    • 4 to 20 mA
    • 0 to 10 V
    • 10 kΩ potentiometer
  • Measuring range:
    • 1000 mm
    • 2000 mm
  • Max speed:
    • 1000 mm: 0.8 m/s (2.62 ft/s)
    • 2000 mm: 1.0 m/s (3.28 ft/s)
  • Linearity: ±0.35%
  • Repeat accuracy: ±0.15 mm
  • Required force: 2 N (0.45 lbs)
  • Supply voltage:
    • 15 to 28 VDC
    • 48 VDC max
  • Operating temperature:
    • 1000 mm: 0 to 50°C (32 to 122°F)
    • 2000 mm: -10 to 80°C (14 to 176°F)
  • Materials:
    • Housing:
      • 1000 mm: reinforced plastic
      • 2000 MM: zinc diecast
    • Wire: stainless steel Ø 0.45 mm, plastic coated
  • Shock resistance: 100 g (1,000 m/s2), 6 ms
  • Vibration resistance: 10 g (100 m/s2), 55-2,000 Hz
  • Protective rating:
    • 1000 mm: IP50
    • 2000 mm: IP65

The TURCK DW33 Series Draw Wire Linear Position Sensor is designed for movement tracking applications with low travel speed, measuring lengths up to 2000 mm, with 4 to 20 mA, 0 to 10 V, or 10 kΩ potentiometer outputs. The IP50 to IP65 rated, durable housing is available in reinforced plastic or diecast zinc for reliable protection and operation, with a wide operating temperature range up to -10 to 80°C (2000 mm variants only). Units offer up to 1 m/s max speed, and result repeatability within 0.15 mm.
