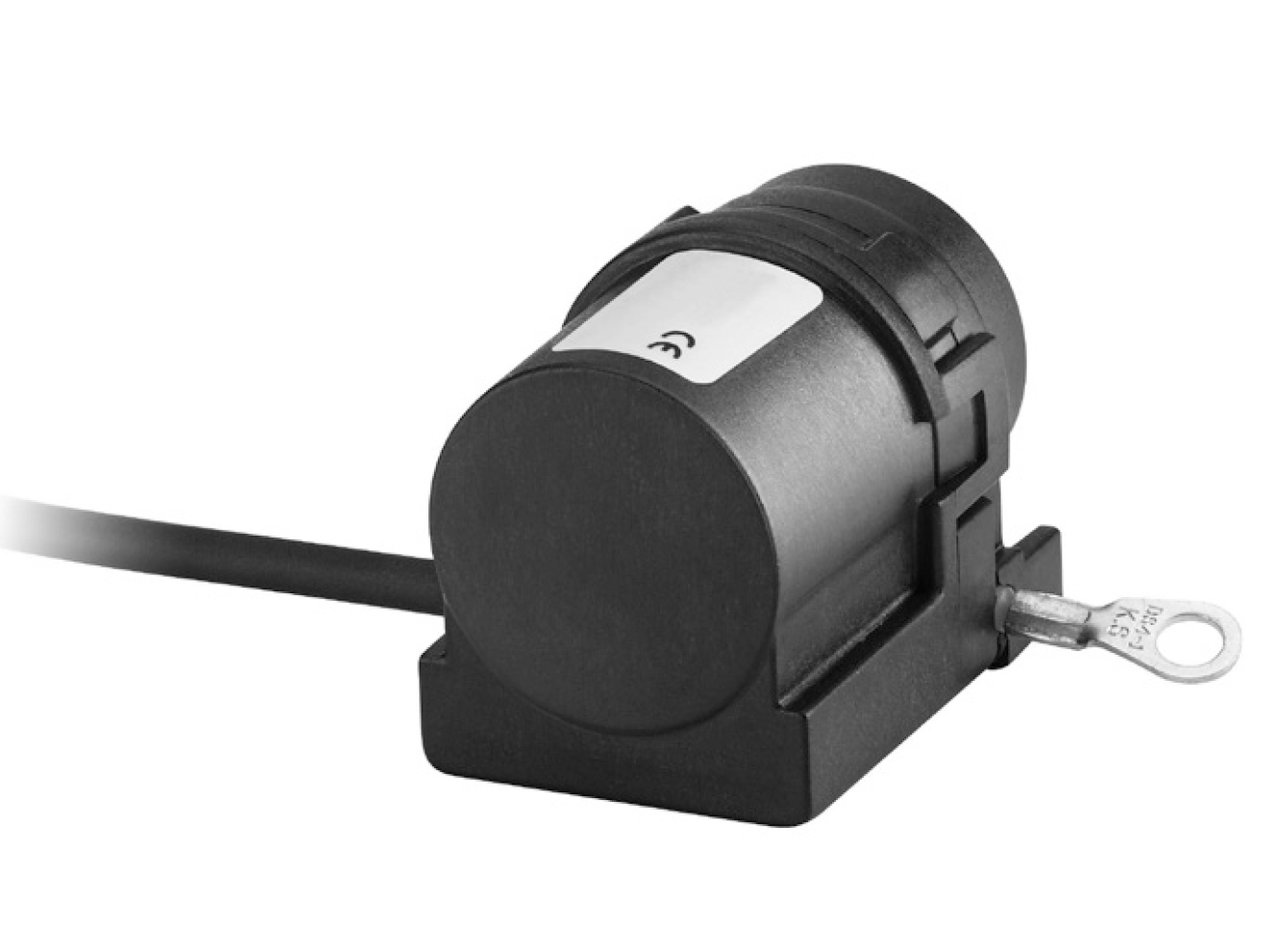

TURCK DW33 Series Draw Wire Position Sensor

Draw wire sensor with analog, current and potentiometer outputs, 0.8 m/s speed, with measuring range up to 600mm. IP50 rated plastic housing.

Starting at $771.10
This model has 4 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Output:
    • 4 to 20 mA
    • 0 to 10 V
    • 10 kΩ potentiometer
  • Extension force: Fmin 0.67 lbs (3.0 N)
  • Max speed: 0.8 m/s (2.62 ft/s)
  • Linearity: ±0.35%
  • Repeat accuracy: ±0.15 mm
  • Supply voltage:
    • 15 to 28 VDC
    • 48 VDC max
  • Operating temperature: -10 to 80 °C (14 to 176°F)
  • Materials:
    • Housing: plastic
    • Wire: stainless steel Ø 0.4 mm, plastic coated

The TURCK DW33 Series Draw Wire Position Sensor is designed for movement tracking applications with low travel speed, measuring lengths up to 600 mm, with 4 to 20 mA, 0 to 10 V, or 10 kΩ potentiometer outputs. The IP50 rated, durable plastic housing offers reliable protection and operation, with a wide operating temperature range from -10 to 80 °C. Units offer 0.8 m/s max speed, and result repeatability within 0.15 mm.
