TURCK LM-2 Series Linear Magnetic Sensor

Name: TURCK LM-2 Series Linear Magnetic Sensor
Brand: TURCK
Price: 388.6 USD
Availability: BackOrder

Linear magnetic sensor with push-pull or RS422 output, and 10 to 100 μm resolution. 0.1 to 1.0 mm gap sensor compatible. Up to IP68/IP69K proctection.

Starting at $388.60

Manufactured

By TURCK

Availability

Call for availability

Product Specs

Features

Output: Push-Pull, RS422
Output signal: A, A, B, B, I, I
Load/channel: ±20 mA /120 Ohm, RS422 standard
Supply voltage: 4.8 to 30 VDC , 4.8 to 26 VDC
Current consumption (without load): typ. 25 mA, max. 60 mA
Minimum pulse interval: 1 μs (edge interval) corresponds to 4 μs/cycle
System accuracy: typ. 200 μm, max. ± (0.04 + 0.04 x L) mm
- (L in [m], up to L = 50 m, at T = 20°C)
Repeat accuracy: ±1 increment
Resolution and speed:
- 100 μm (post-quadrature), max. 25 m/s
- 25 μm (post-quadrature), max. 4 m/s
- 10 μm (post-quadrature), max. 6.5 m/s
Gap sensor / magnetic band: 0.1 to 1.0 mm (0.4 mm recommended)
Offset: ±1 mm max
Tilting/torsion: 3° max
Operating temperature: -20 to 80 °C (-4 to 176°F)
Shock resistance: 500 g / 1 ms
Vibration strength: 30 g / 10 to 2000 Hz
Humidity: 100%, condensation possible
Housing material: Zinc die-cast, IP67
- IP68/IP69K optional
Short circuit protection
LED status indicators

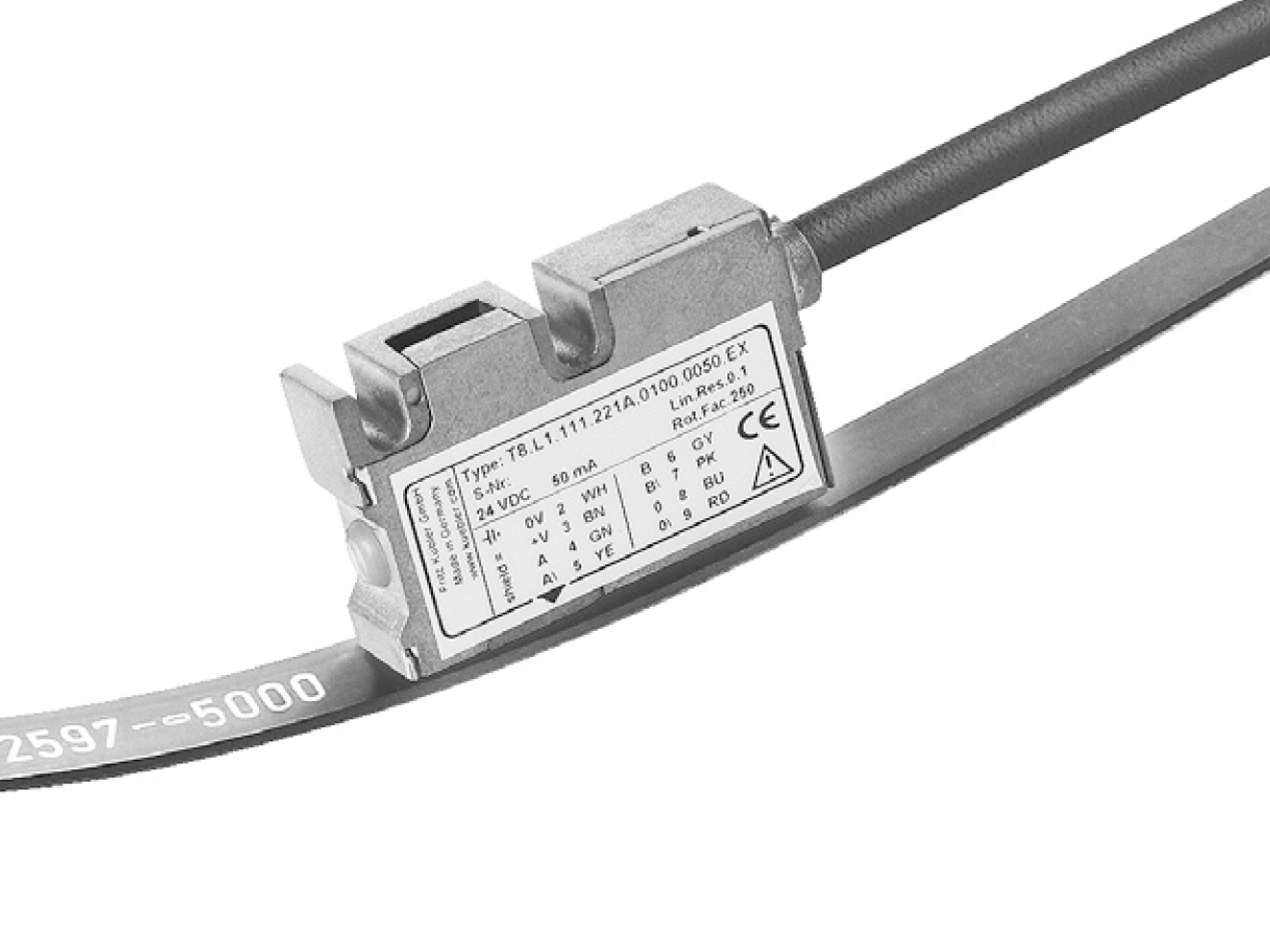

The TURCK LM-2 Series Linear Magnetic Sensor is designed for position and movement tracking in industrial applications, with resolution down to 0.01 mm (10 µm), and push-pull or RS422 outputs. The IP67 rated, fully potted diecast zinc housing offers reliable protection and operation, with high vibration and shock resistance thanks to the non-contact technology this line is designed around. Higher ingress protection, up to IP68/IP69K, is available.

The compact design of the LM-2 Series features and installation depth of only 10 mm, installation height of 28 mm, and a magnetic band width of 10 mm. A wide operating temperature range of -20 to 80°C, reverse polarity protection, lateral misalignment tolerances up to +1 mm, and clear LED warning indicators when the magnetic field is too weak make this an flexible, intuitive measurement system solution.
