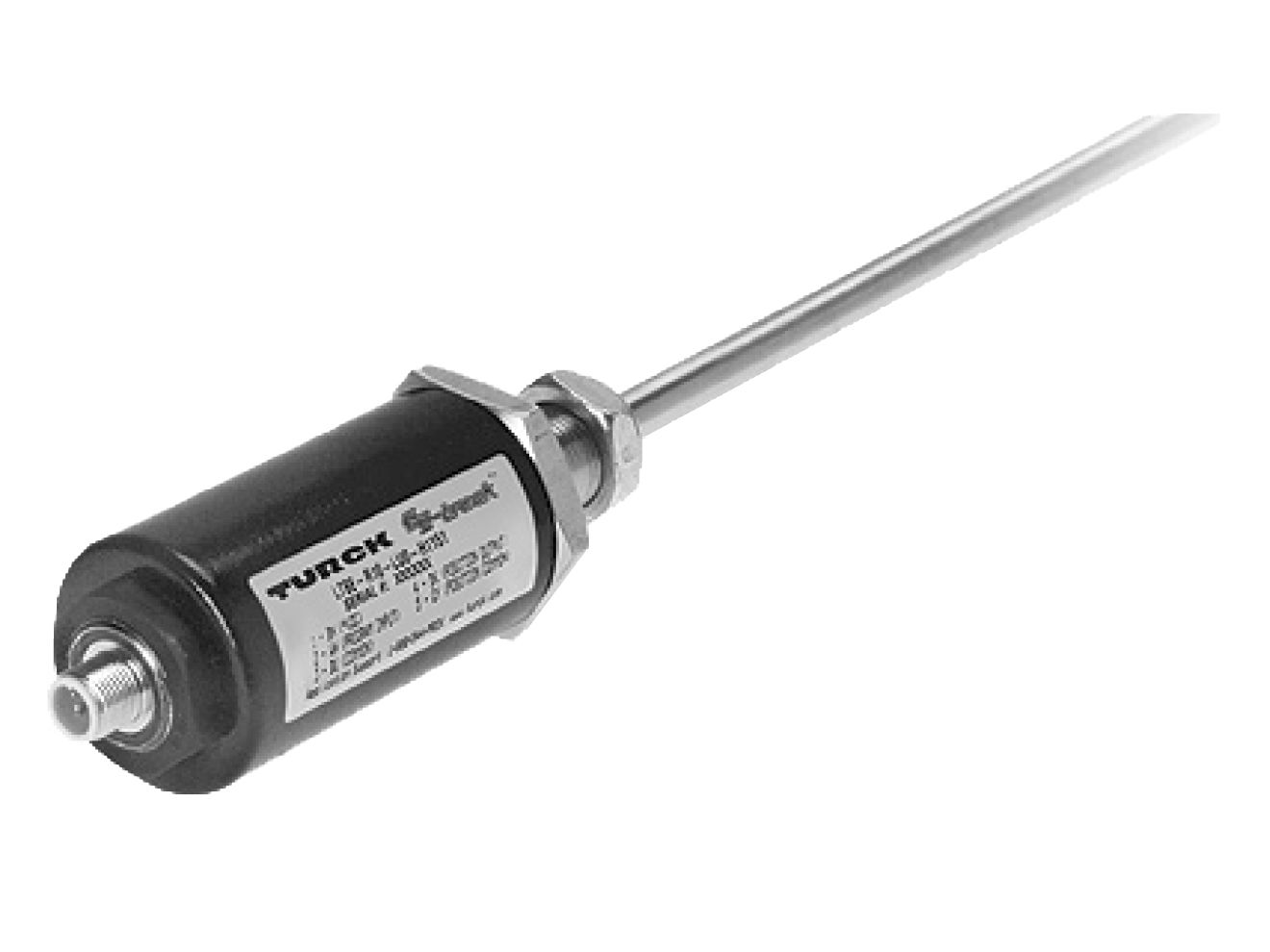

TURCK EZ-track R10 SSI Rod Style Series Linear Position Transducer

Linear position transducer with SSI interface, high shock and vibration resistance, with 24 or 25 bit, binary or gray code output.

Starting at $1,414.90
This model has 4 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Measuring span: 6in, 12in, and 100 mm available
  • Output: 24 or 25 bit, Binary or Gray Code
  • Resolution:
    • E: 0.00005 in, 0.0001 in, 0.0005 in, 0.001 in
    • M: 1, 5, 10, 20 micron
  • Repeat accuracy: equal to resolution
  • Operating temperature:
    • Head (Electronics):
    • -40 to 85°C (-40 to 185°F)
    • Guide Tube:
    • -40 to 105°C (-40 to 221°F)
  • Operating pressure:
    • 5000 psi, operating
    • 10,000 psi, spike
  • Operating voltage: 7 to 30 VDC
  • Response time:
    • 4.0 K measurements/sec (span length 1 to 12 in)
  • Connection: 6-pin M12 x 1 connector
  • 3x diagnostic LEDs with LTX variants
  • Shock resistance: 1000 g
  • Vibration resistance: 30 g
  • Protection rating: IP68
  • Approvals: CE

The TURCK EZ-track R10 SSI Rod Style Series Linear Position Transducer is available in inches and millimeter span lengths (limited variants remain, product is being phased out). These sensors can withstand up to 1000 g of shock, with 30 g vibration testing without damage or impacts to signaling. The SSI interface is available in 24 or 25 bit resolution, with binary or gray code configurations.
