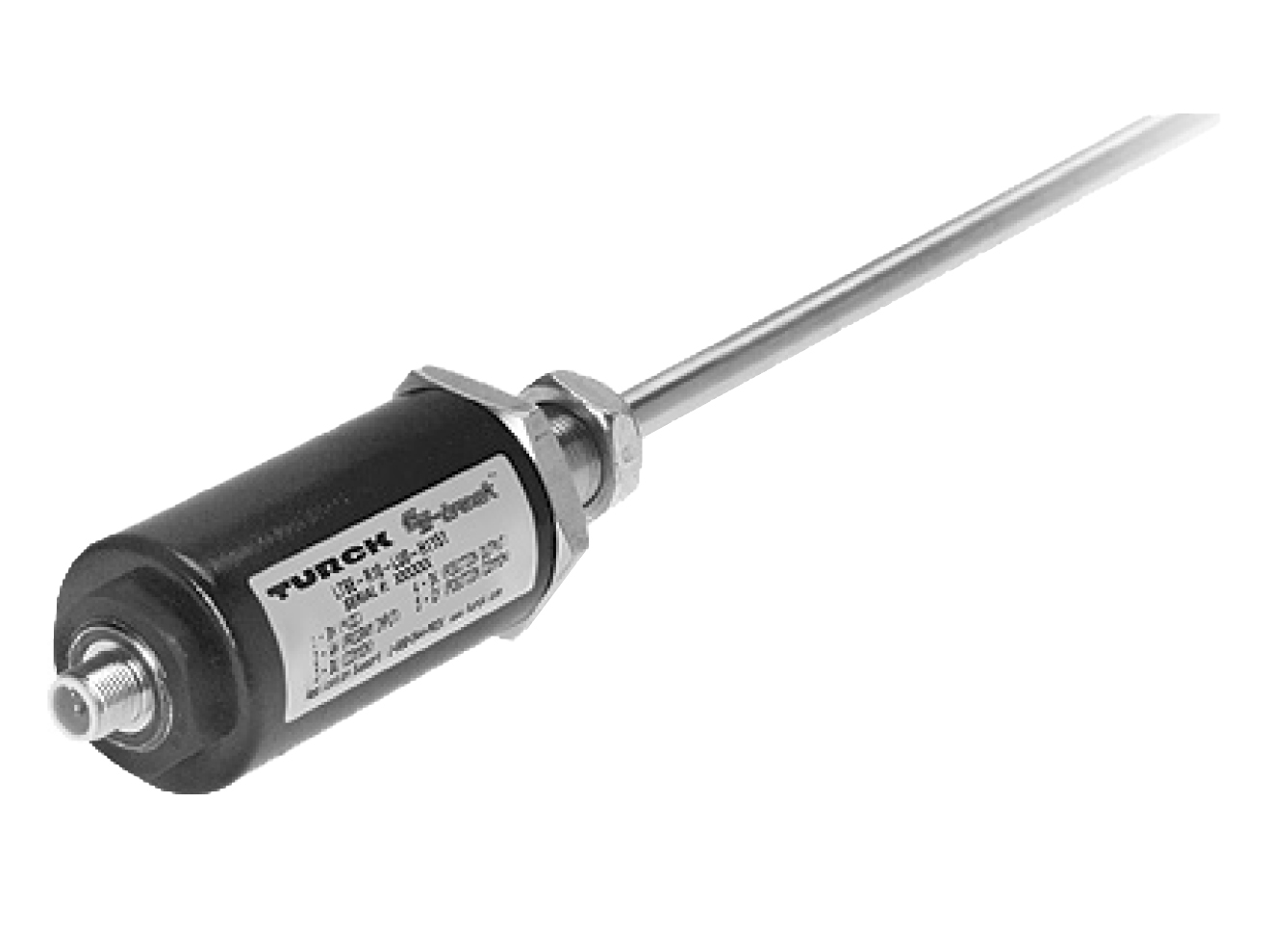

TURCK EZ-track R10 Analog Rod Style Series Linear Position Transducer

Name: TURCK EZ-track R10 Analog Rod Style Series Linear Position Transducer
Brand: TURCK
Price: 1356.9 USD
Availability: BackOrder

Analog linear position transducer with 2 to 120 in span, high shock and vibration resistance, with reversible current and voltage ouputs.

Starting at $1,356.90

Manufactured

By TURCK

Availability

Call for availability

Product Specs

Features

Measuring span: 2 to 120 in
- Variants also available in 150 to 813 mm
Output:
- 0 to 10 VDC/10 to 0 VDC
- -10 to 10 VDC/10 to -10 VDC
- 0 to 5 VDC/5 to 0 VDC
- -5 to 5 VDC/5 to -5 VDC
- 4 to 20 mA/20 to 4 mA
- Some may be available only by request
Resolution:
- LT: 0.001 in / 16 bit
- LTX: 0.00006 in / 16 bit
Repeat accuracy:
- LT: +/-0.006% of full span or +/-0.002 in
  - Whichever is greater
- LTX: Equal to resolution
Response time:
- LT: 1 to 4 ms (depending on span length)
- LTX: 0.5 mms to 8ms (depending on span length)
Operating temperature:
- Head (Electronics):
  - LT : -40 to 70°C (-40 to 158°F)
  - LTX: -40 to 85°C (-40 to 185°F)
- Guide Tube: -40 to 105°C (-40 to 221°F)
Operating pressure:
- 5000 psi, operating
- 10,000 psi, spike
Operating voltage:
- LT: 13.5 to 30 VDC
- LTX: 7 to 30 VDC
Connection: 5-pin M12 x 1 connector
3x diagnostic LEDs with LTX variants
Shock resistance:
- LT: 2000 g
- LTX: 1000 g
Vibration resistance: 30 g
Protection rating:
- LT: IP67
- LTX: IP68
Approvals: CE

The TURCK EZ-track R10 Analog Rod Style Series Linear Position Transducer is available in 2 to 120 in spans, designed to withstand harsh industrial environments including lumber mills, steel mills and stamping plants. LT variants can withstand up to 2000 g of shock, with both LT and LTX variants tested for up to 30 g vibration without damage or impacts to signaling.

The EZ-track R10 Series is available in durable aluminum or stainless steel housings, with IP67 (LT) or IP68 (LTX) ratings to best meet application needs. A range of current and voltage outputs are available, which are reversible in the field. This means one model can be used for two applications via programming the “zero” and “span” accordingly.
