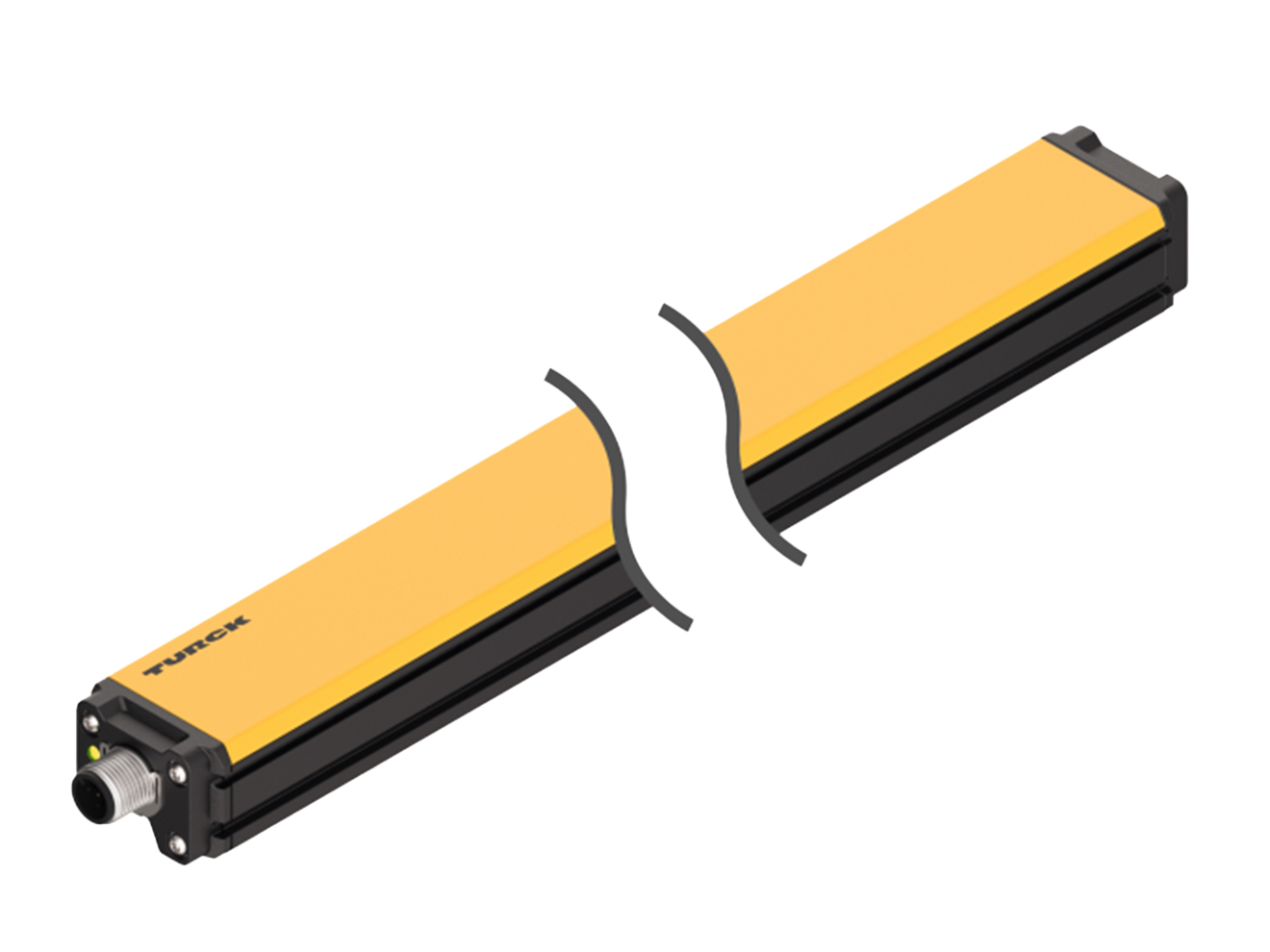

TURCK Q-track Q25L HE-Series Linear Position Sensor
Rectangular linear position sensor with 100 to 800 mm span. 8-wire SSI output with wide operating temperature range, IP67 rating.
Overview
Features
- Measuring span: 100 to 800 mm
- Resolution: 0.001 mm
- Repeat accuracy: 10 µm (0.01 mm)
- Ambient temperature: -25 to 70°C
- Operating voltage: 15 to 30 VDC
- Short-circuit protection
- Wire breakage / reverse polarity protection
- Output: 8-wire, SSI, 25 bit gray code
- Sampling rate: 5 kHz
- Housing: rectangular, 35 x 25 mm, L = measuring range + 58 mm
- Material:
- Housing: aluminum
- Material active face: plastic, PA6-GF30
- Connection: connector, M12 x 1
- 3x LEDs (green/yellow status indication)
- Short blind zones
- Vibration resistance: 55 Hz (1 mm)
- Shock resistance: 30 g (11 ms)
- Protection rating (IEC 60529/EN 60529): IP67/IP66
Description
The TURCK Q-track Q25L HE-Series Linear Position Sensor is available with 100 to 800 mm measuring spans with 0.001 mm resolution and M12 Eurofast connection. The watertight, IP67 design offers reliable operation, with a -25 to 70°C operating range. Output is via 8-wire SSI interface (25 bit gray code).
