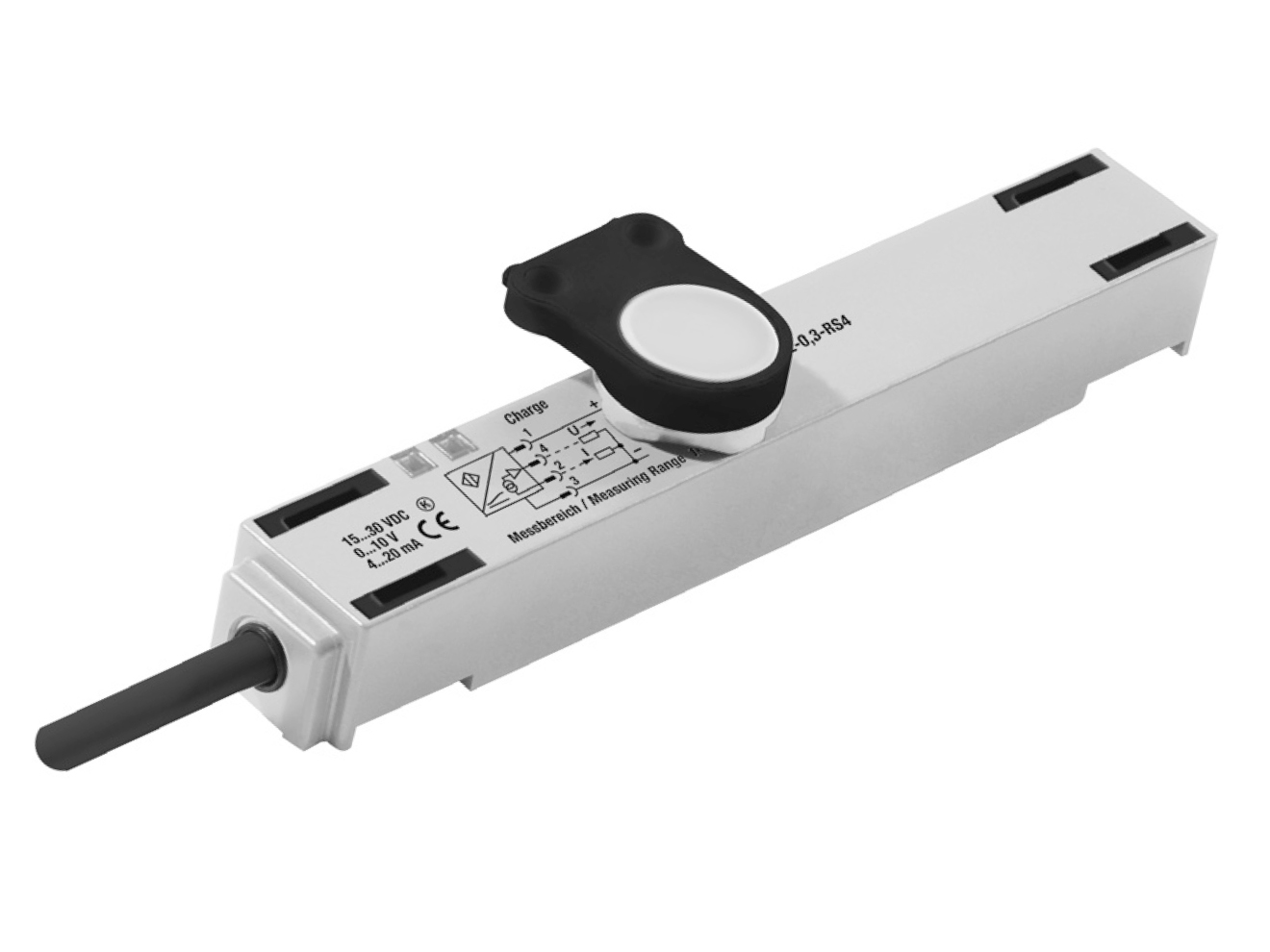

TURCK Q-track Q17L Compact Series Linear Position Sensor
Rectangular compact linear position sensor with 50 to 300 mm span. Analog current and voltage outputs available, with wide operating temperature range. IP67 rating.
Overview
Features
- Measuring span: 50 to 300 mm
- Resolution: 12 bit
- Repeat accuracy: ≤ 0.025% of full scale
- Ambient temperature: -25 to 70°C
- -40 to 70°C (S97 option)
- Operating voltage:
- LIU5: 15 to 30 VDC
- LU4: 8 to 30 VDC
- Short-circuit protection
- Wire breakage / reverse polarity protection
- Output:
- 0 to 10 V
- 0.5 to 4.5 V
- 4 to 20 mA
- Sampling rate: 700 Hz
- Housing: rectangular, 20 x 16.5 mm, length L = measuring length + 32 mm
- Material:
- Housing: plastic, PC-GF10
- Cable:
- LIU5: PVC
- LU4: TPE
- Connection: cable/cable with connector, M12 x 1
- 2x LEDs (green status indication)
- Short blind zones
- Vibration resistance: 55 Hz (1 mm)
- Shock resistance: 30 g (11 ms)
- Protection rating (IEC 60529/EN 60529): IP67
What's in the Box
- Q17L Compact Series Linear Position Sensor
- M1.1-Q17L, M1.2-Q17L mounting feet
- P1-Li-QR14/Q17L positioning element
Description
The TURCK Q-track Q17L Compact Series Linear Position Sensor offers a 50 to 300 mm measuring span with a highly compact design, 12 bit resolution and M12 Eurofast connection. The watertight, IP67 design offers reliable operation, with a -25 to 70°C operating range (-40 to 70°C with /S97 option). Analog output offerings include 4 to 20 ma/0 to 10 V, or 0.5 to 4.5 V.
