TURCK Q-track QR14 Miniature Series Linear Position Sensor
Rectangular miniature linear position sensor with 25 mm span. Analog current and voltage outputs available, with wide operating temperature range. IP68/IP69K rating.
Overview
Features
- Measuring span: 25 mm
- Resolution: 12 bit
- Repeat accuracy: ≤ 0.025% of full scale
- Ambient temperature: -25 to 70°C
- -40 to 70°C (S97 option)
- Operating voltage:
- LIU5: 15 to 30 VDC
- LU4: 8 to 30 VDC
- Short-circuit protection
- Wire breakage / reverse polarity protection
- Output:
- 0 to 10 V
- 0.5 to 4.5 V
- 4 to 20 mA
- Sampling rate: 700 Hz
- Housing: rectangular, 53.5 x 49 x 14 mm
- Material:
- Housing: plastic, PBT-GF30-V0
- Cable:
- LIU5: PVC
- LU4: TPE
- Connection: cable/cable with connector, M12 x 1
- 2x LEDs (green status indication)
- Short blind zones
- Vibration resistance: 55 Hz (1 mm)
- Shock resistance: 30 g (11 ms)
- Protection rating (IEC 60529/EN 60529): IP68/IP69K
What's in the Box
- QR14 Miniature Series Linear Position Sensor

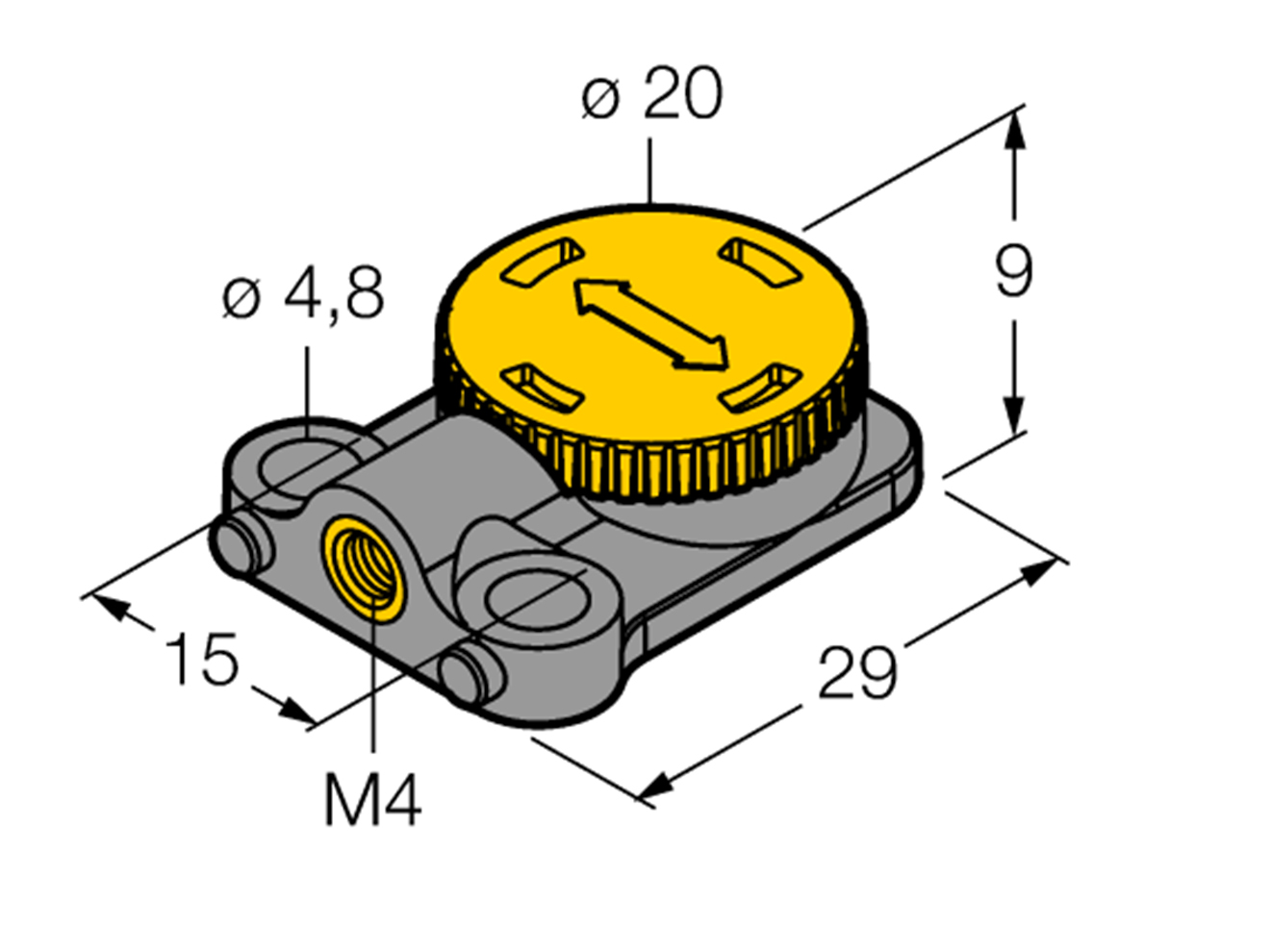

- P1-Li-QR14/Q17L positioning element
Description

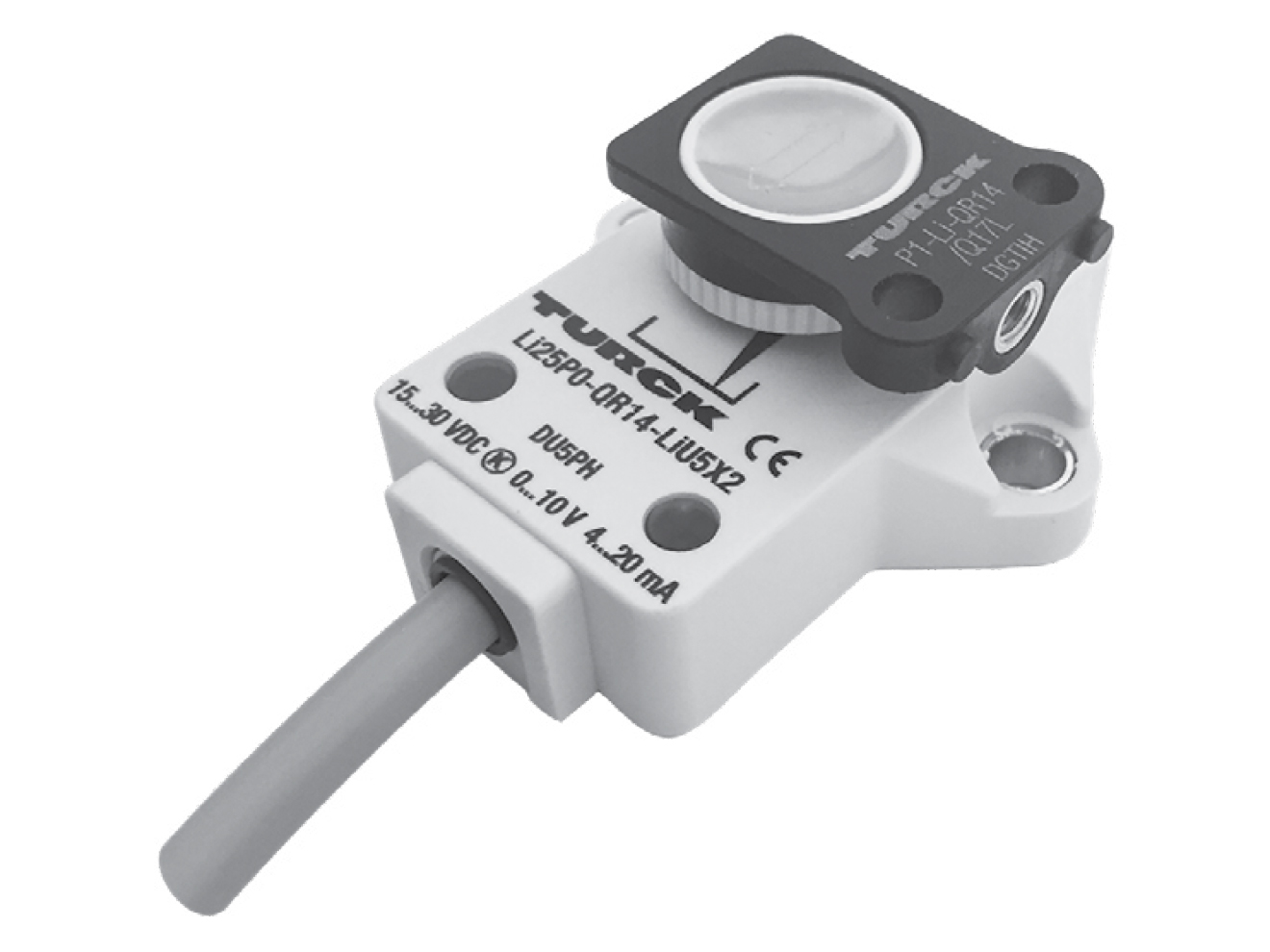

The TURCK Q-track QR14 Miniature Series Linear Position Sensor offers a 25 mm measuring span with a highly compact design, 12 bit resolution and M12 Eurofast connection. The watertight, IP68/IP69K design offers reliable operation, with a -25 to 70°C operating range (-40 to 70°C with /S97 option). Analog output offerings include 4 to 20 ma/0 to 10 V, or 0.5 to 4.5 V.
