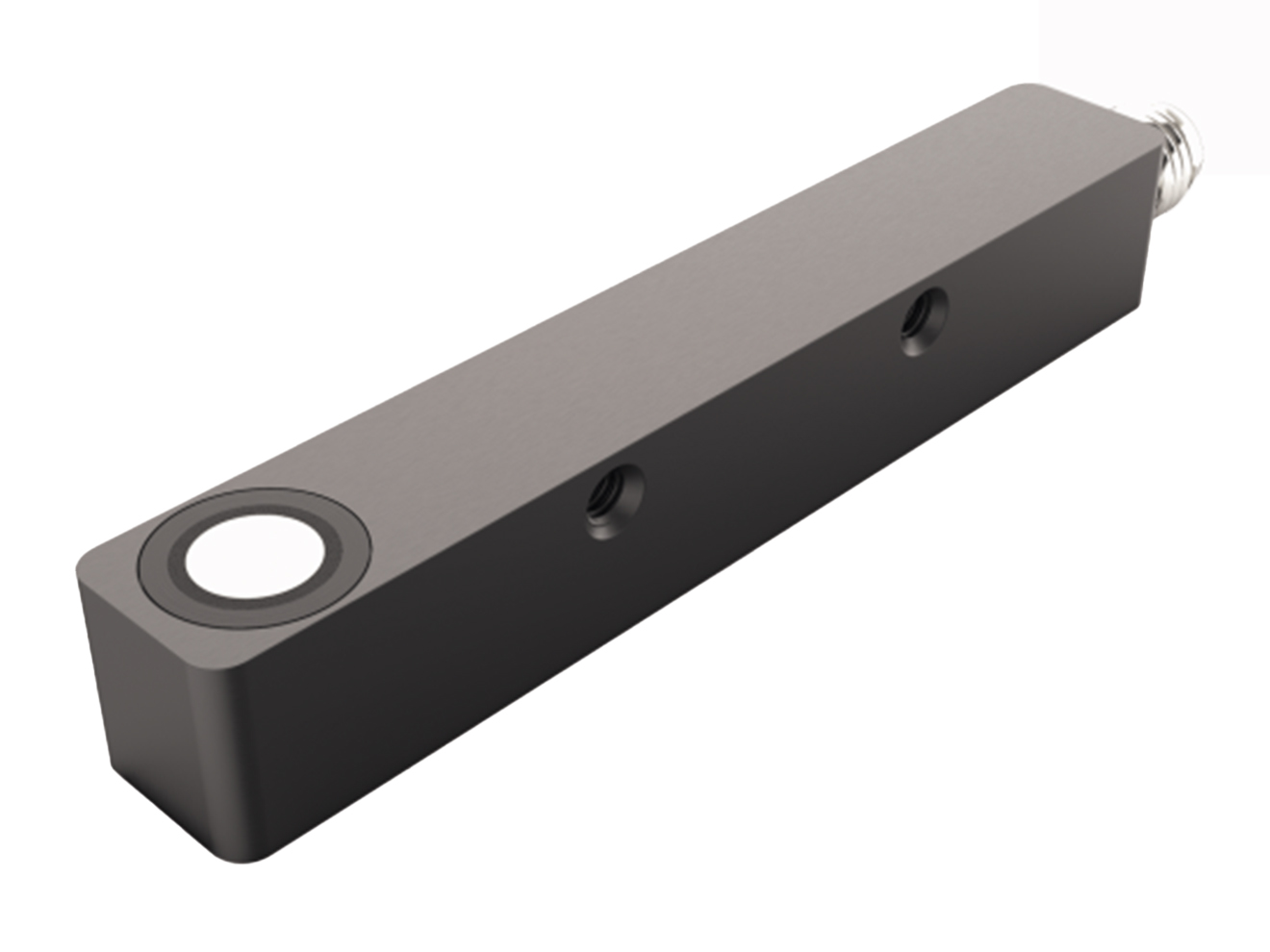

TURCK Compact Rectangular Series Ultrasonic Sensor

Rectangular ultrasonic sensor with compact housing, and up to 40 cm range. M8 x 1 connection.

Starting at $337.30
This model has 8 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Operating principle: retroreflective, proximity/diffuse
  • Design: 82 x 12 x 12 mm
  • Outputs: NPN, PNP
  • Operating distance: 20 to 40 cm max
  • Operating Voltage: 18 to 30 VDC
  • Ambient Temp: -25 to 70°C
  • Protection Rating: IP67
  • Materials:
    • Housing: Metal, AL, Anodized
  • Approvals: CE, cULus

The TURCK Compact Rectangular Series Ultrasonic Sensor features a 82 x 12 x 12 mm housing for tight installation spaces, whilst maintaining operating distances up to 40 cm. Retroreflective and proximity variants are available, with a wide operating temperature range, NPN or PNP switching outputs, and M8 x 1 connection.
