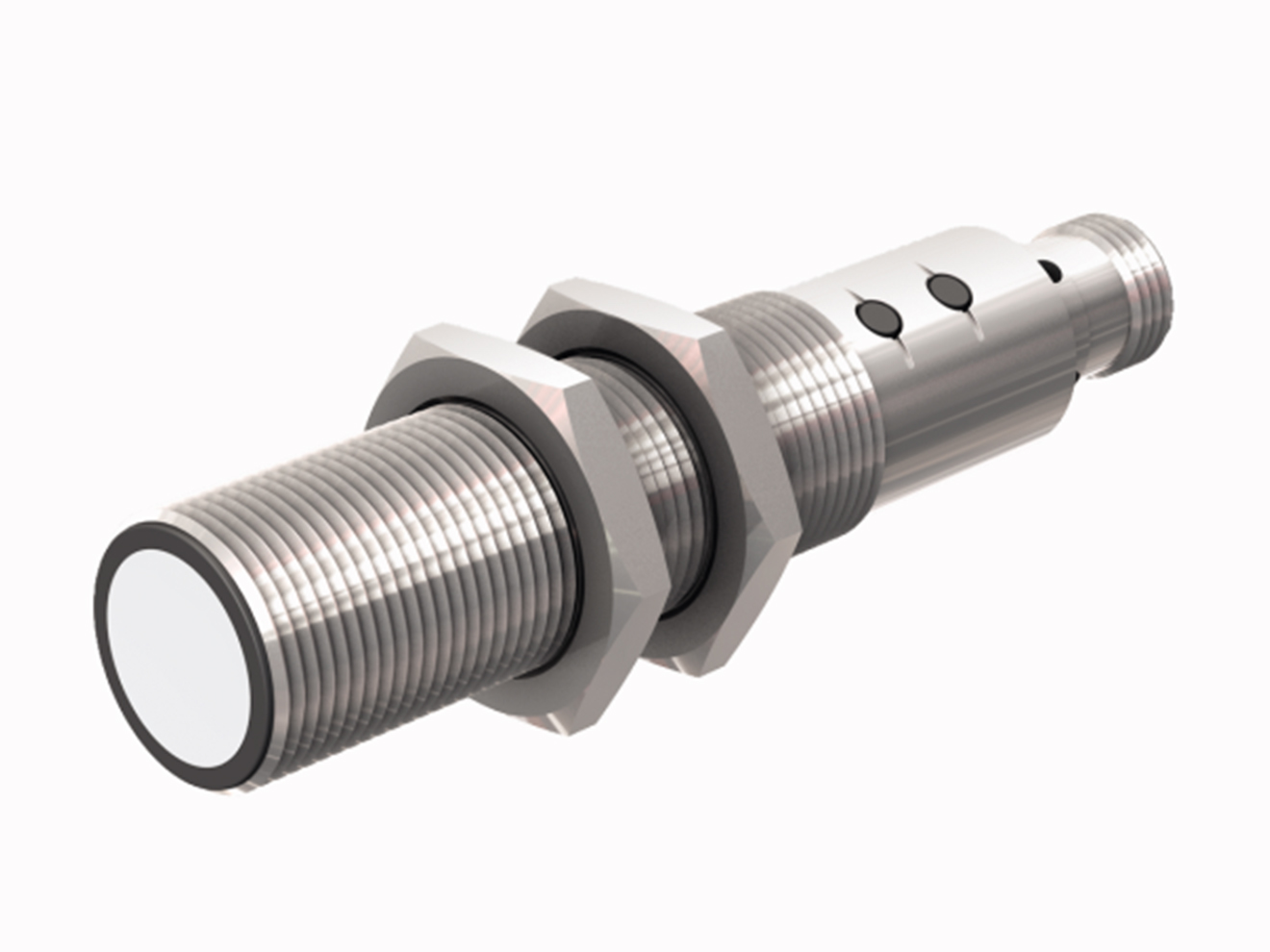

TURCK ATEX Threaded Barrel Series Ultrasonic Sensor

ATEX and IECEx approved threaded barrel ultrasonic sensor with front sensing transducer with 40 to 600 cm range. IO-Link as standard.

Starting at $640.70
This model has 5 variants.
Manufactured
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Operating principle: retroreflective programmable
  • Design:
    • M18: 18 mm, M12x1 connection
    • M30: 30 mm, M12x1 connection
  • Outputs: NPN, PNP, 0 to 10 V, 4 to 20 mA
  • Operating distance: 40 to 600 cm
  • Communication protocol: IO-Link V1.1
  • Operating Voltage: 15 to 30 VDC
  • Continuous Switching Current: ≤150 mA
  • Repeatability: 0.15% of full scale
  • Short-Circuit / Reverse Polarity Protection
  • Ambient Temp: -25 to 70°C
  • Protection Rating: IP67
  • Hazardous area approvals:
    • II 3G Ex nA nC IIC T6 Gc
    • II 3D Ex tc IIIC T70°C Dc
  • Materials:
    • Housing: 316 SS
    • Transducer: PET/PU/Epoxy
  • LED: yellow/green

The TURCK ATEX Threaded Barrel Series Ultrasonic Sensor features 18 and 30mm designs with smooth transducer faces, adjustable sensing fields, and Zone 2 and 22 hazardous area approved stainless steel barrels. Output offerings include PNP/NPN switchable, window mode, and/or 4 to 20 mA/0 to 10 V analog. The ATEX Threaded Barrel Series sensors features IO-Link V1.1 communication as standard.
