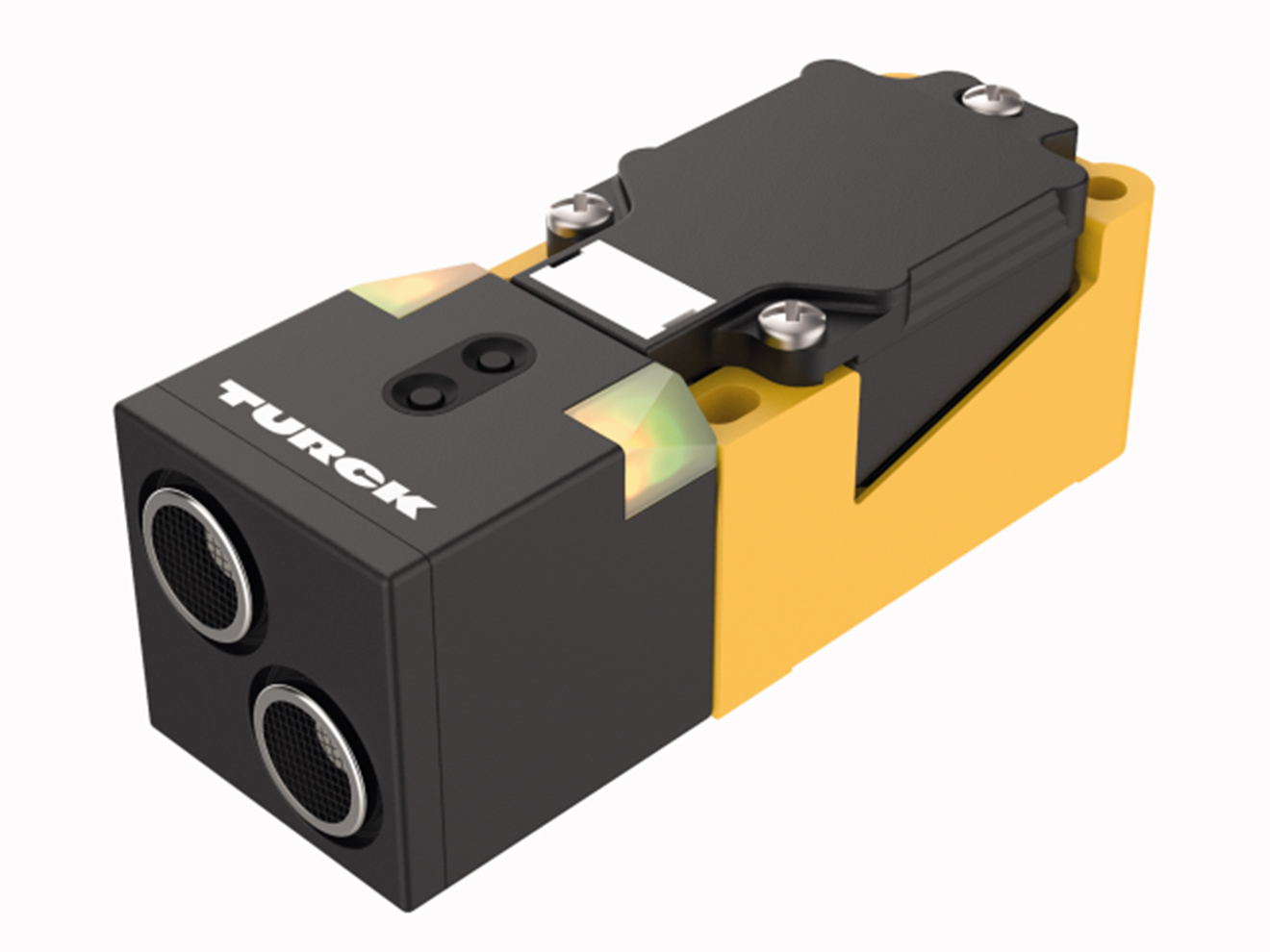

TURCK Rectangular Series Ultrasonic Sensor
Rectangular ultrasonic sensor with rotatable sensing head, with 200 cm range. Terminal chamber or integrated connection.
Overview
Features
- Operating principle: retroreflective programmable
- Design:
- CK40: 67 x 40 x 40 mm
- CP40: 166 x 40 x 40 mm
- Outputs: NPN, PNP, 0 to 10 V, 4 to 20 mA
- Operating distance: 200 cm
- Operating Voltage: 15 to 30 VDC
- Continuous Switching Current: ≤150 mA
- Repeatability: 0.25% of full scale
- Short-Circuit / Reverse Polarity Protection
- Ambient Temp: 0 to 70°C
- Protection Rating: IP40
- Materials:
- Housing: PBT-GF30
- Transducer: AL/Ceramic
- LED: yellow/green
Description
The TURCK Rectangular Series Ultrasonic Sensor features a 5-way rotatable sensing head with rectangular housing. CK40 variants feature an integrated connector, whereas the CP40 variants offer a terminal chamber. This line of sensor offers a large detection range with wide opening angle and small blind zone. The Rectangular Series is suited to safe detection of objects with a weak reflection signal. Output offerings include PNP, NPN, and programmable 4 to 20 mA/0 to 10 V.
