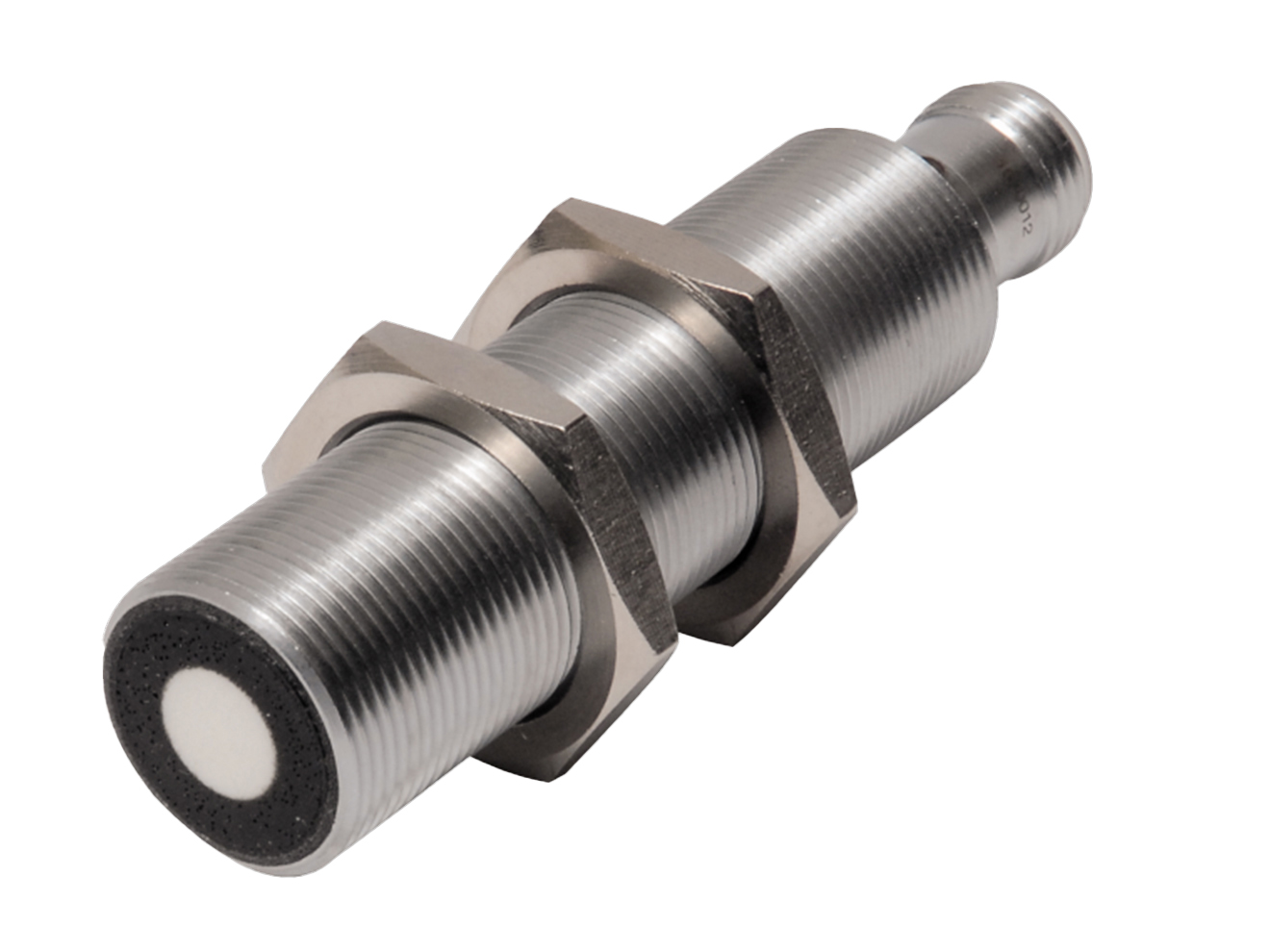

TURCK Threaded Barrel Series Ultrasonic Sensor

Threaded barrel ultrasonic sensor with front and side sensing transducer with 40 to 600 cm range. Switching, analog and frequency outputs. IO-Link available.

Starting at $241.50
This model has 43 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Operating principle: diffuse/proximity, retroreflective, dual-mode
  • Design:
    • M18: 18 mm, M12x1 connection
    • M30: 30 mm, M12x1 connection
  • Outputs: NPN, PNP, 0 to 10 V, 4 to 20 mA, frequency
  • Operating distance: 40 to 600 cm
  • IO-Link V1.1 option with select variants
  • Operating Voltage:
    • M08: 15 to 30 VDC
    • M12: 10 to 30 VDC (NPN/PNP outputs), 15 to 30 VDC (analog variants)
  • Continuous Switching Current: ≤150 mA
  • Repeatability: 0.15% of full scale
  • Short-Circuit / Reverse Polarity Protection
  • Ambient Temp:
    • M18: -25 to 70°C
    • M30: -25 to 50°C
  • Protection Rating: IP67
  • Materials:
    • Housing: CPB
    • Transducer: PET/PU/Epoxy
  • LED: yellow/green

The TURCK Threaded Barrel Series Ultrasonic Sensor features 18 and 30mm designs with smooth transducer faces, short blind zones, adjustable sensing fields, and chrome plated brass barrels. Output offerings include PNP, NPN, 4 to 20 mA, 0 to 10 V and frequency outputs, with dual set points available with certain models. The Threaded Barrel Series sensors can be taught via wire and integral buttons. IO-Link V1.1 communication is available with select models, permitting the switching variant can also be used to directly measure via the process value output. These sensors come in retroreflective and proximity variants, with dual-mode available in the larger ranges (40 to 600 cm).
