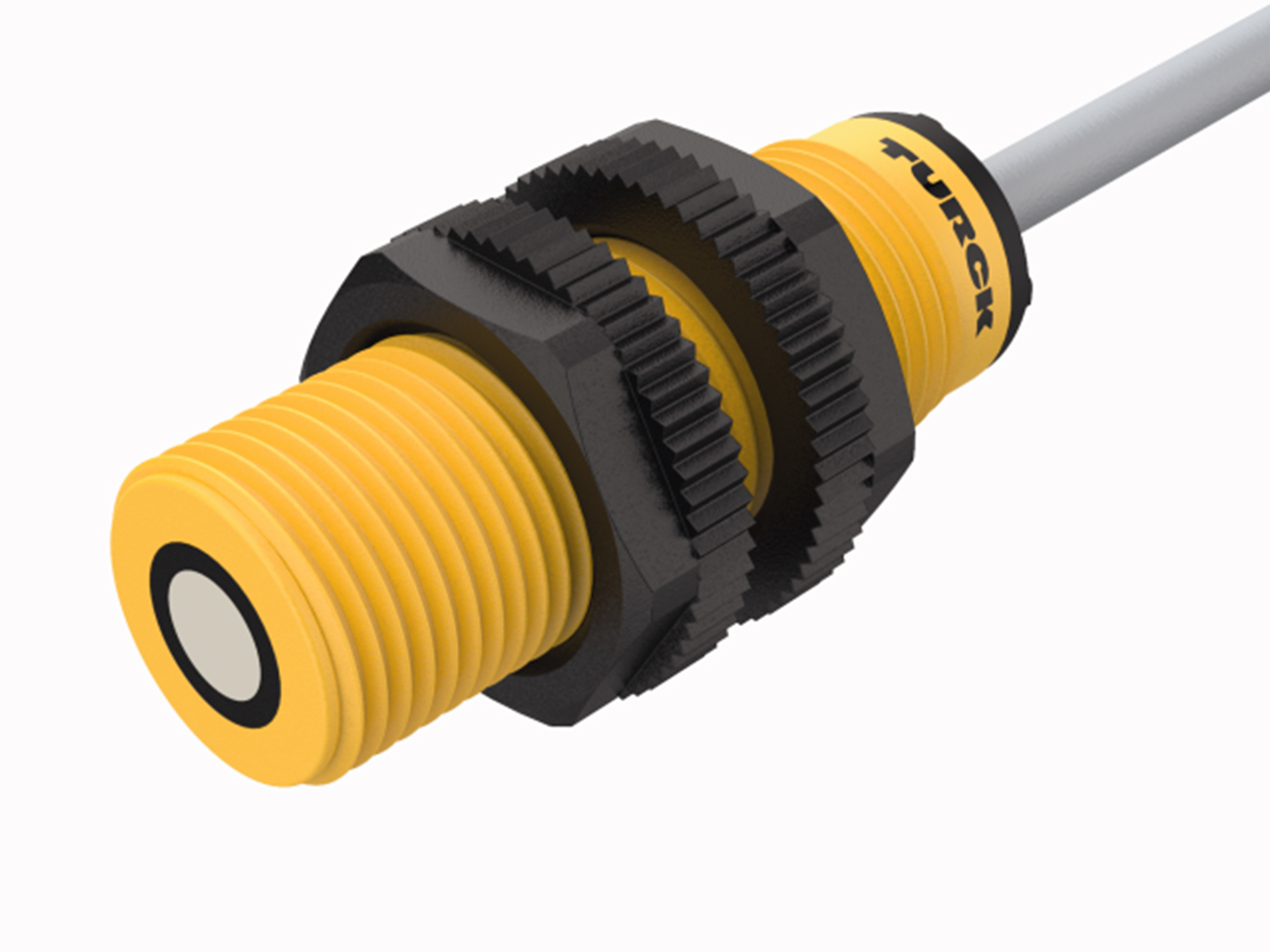

TURCK ECO Series Ultrasonic Sensor
Economic ultrasonic sensor with front-facing transducer with 50 cm range. M12 connections, switching and analog outputs.
Overview
Features
- Operating principle: proximity, retroreflective
- Design: 12 mm, M12x1 connection
- Outputs: NPN, PNP, 0 to 10 V, 4 to 20 mA
- Operating distance: up to 50 cm
- IO-Link V1.1 option
- Operating Voltage: 15 to 30 VDC
- Continuous Switching Current: ≤150 mA
- Repeatability: 0.15% of full scale
- Short-Circuit / Reverse Polarity Protection
- Ambient Temp: -20 to 50°C
- Protection Rating: IP67
- Materials:
- Housing: Plastic/LCP
- Transducer: Plastic/Epoxyd resin/PU foam
- Yellow LED
Description
The TURCK ECO Series Ultrasonic Sensor is a line of 12mm sensors with 2m potted cable or Eurofast M12 connections available, and a IP67 ingress protection rating. The front-flush transducer diaphragm is predominantly insensitive to contamination. The M12 design offers analog models with 0 to 10 V or 4 to 20 mA output. The translucent end cap permits ready viewing of the sensor's switching status from virtually any angle.
