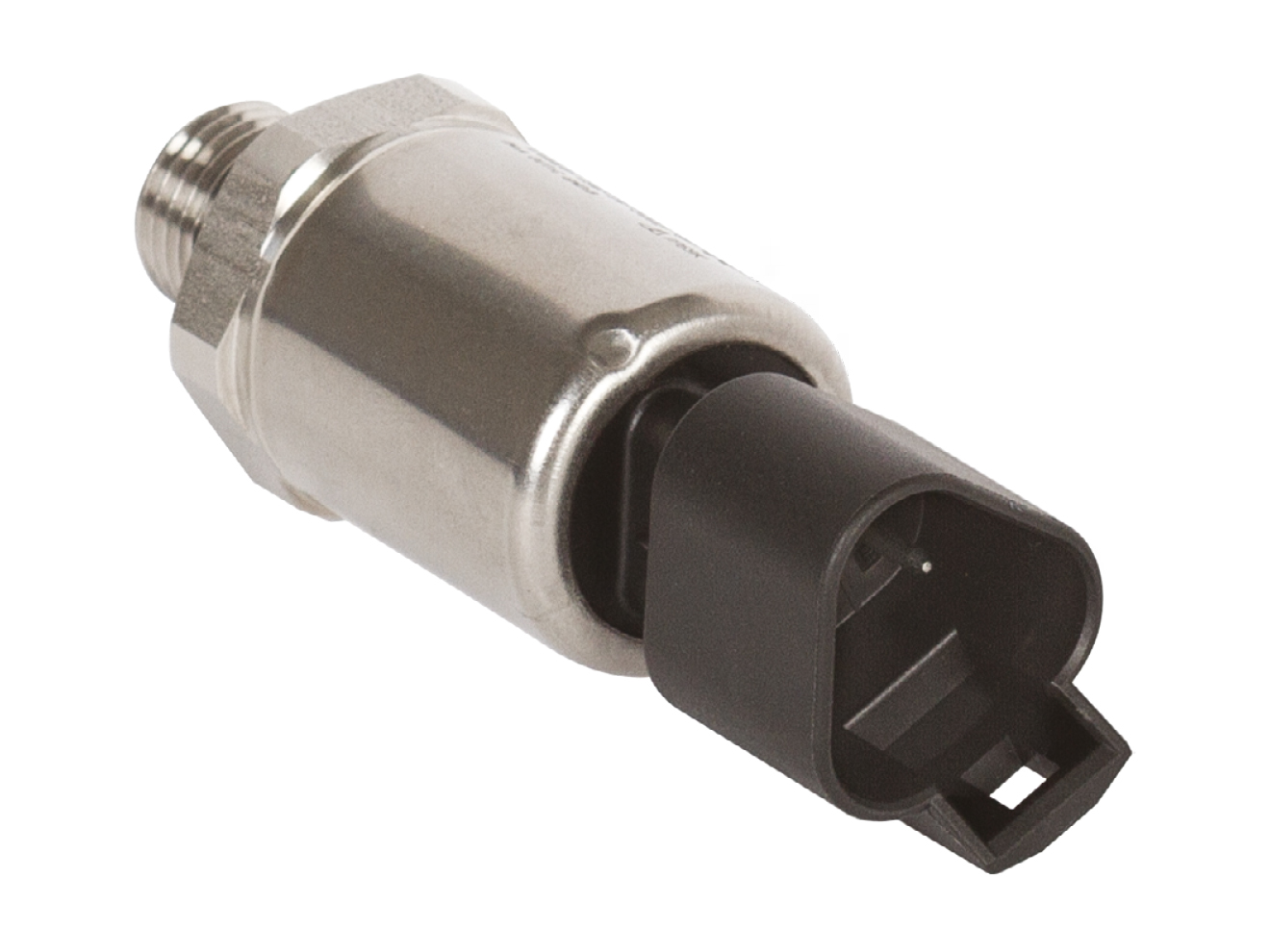

TURCK PT2100 Series Pressure Transmitter
Pressure transmitter for use with mobile equipment. Deutsch or Eurofast M12 electrical connections, psi and bar units, up to 7500 psi.
Overview
Features
- Design: stainless steel measuring cell
- Pressure range: 0 to 100 bar, or 0 to 7500 psig (depending on variant)
- Accuracy: ± 0.3% full scale
- Operating voltage:
- I2: 7.5 to 33 VDC
- U3: 7 to 33 VDC
- U6: 5 VDC regulated
- Response time: < 2ms, typ. 1 ms
- Short Circuit / Reverse Polarity Protection
- Medium temperature: −40 to 125°C
- Materials:
- Housing:
- Stainless steel (1.4404) / AISI 316 L, Polyarylamide 50% Gf UL 94 V-0
- Wetted: Stainless steel (1.4404) / AISI 316 L
- Housing:
- Process connections: NPT, G (BSPP)
- Protection rating: IP69K / III
- Interference immunity / emission:
- EN 61326-2-3 (pressure transducer)
- ISO 13766
- DIN EN 13309
- DIN ISO 14982
- CISPR11
- Immunity motor vehicle directive:
- ISO 11452-2, HF (Field), 100 V/m (200 to 2000 MHz)
- ISO 11452-4, HF (BCI), 100 mA (20 to 400 MHz)
- ISO 10605, ESD, ±15 kV contact, ±15 kV air
- ISO 7637-2 3), pulses 1, 2a, 2b, 3a, 3b (test level 4)
- ISO 16750-2, load dump, 155 V (1 Ω, 300 ms)
- Motor vehicle directive ECE R10
- Motor vehicle directive 2004/104/EC
Description
The TURCK PT2100 Series Pressure Transmitter is optimized for pressure measurement applications involving mobile technology and equipment, with interference immunity and emission ratings. The stainless steel measuring cell offers ranges up to 100 bar, or up to 7500 in psi. The optional Deutsch or Eurofast M12 connectors and robust electrical circuits ensure versatility as well as a long service life. Additional measurement ranges and connections are available upon request.
