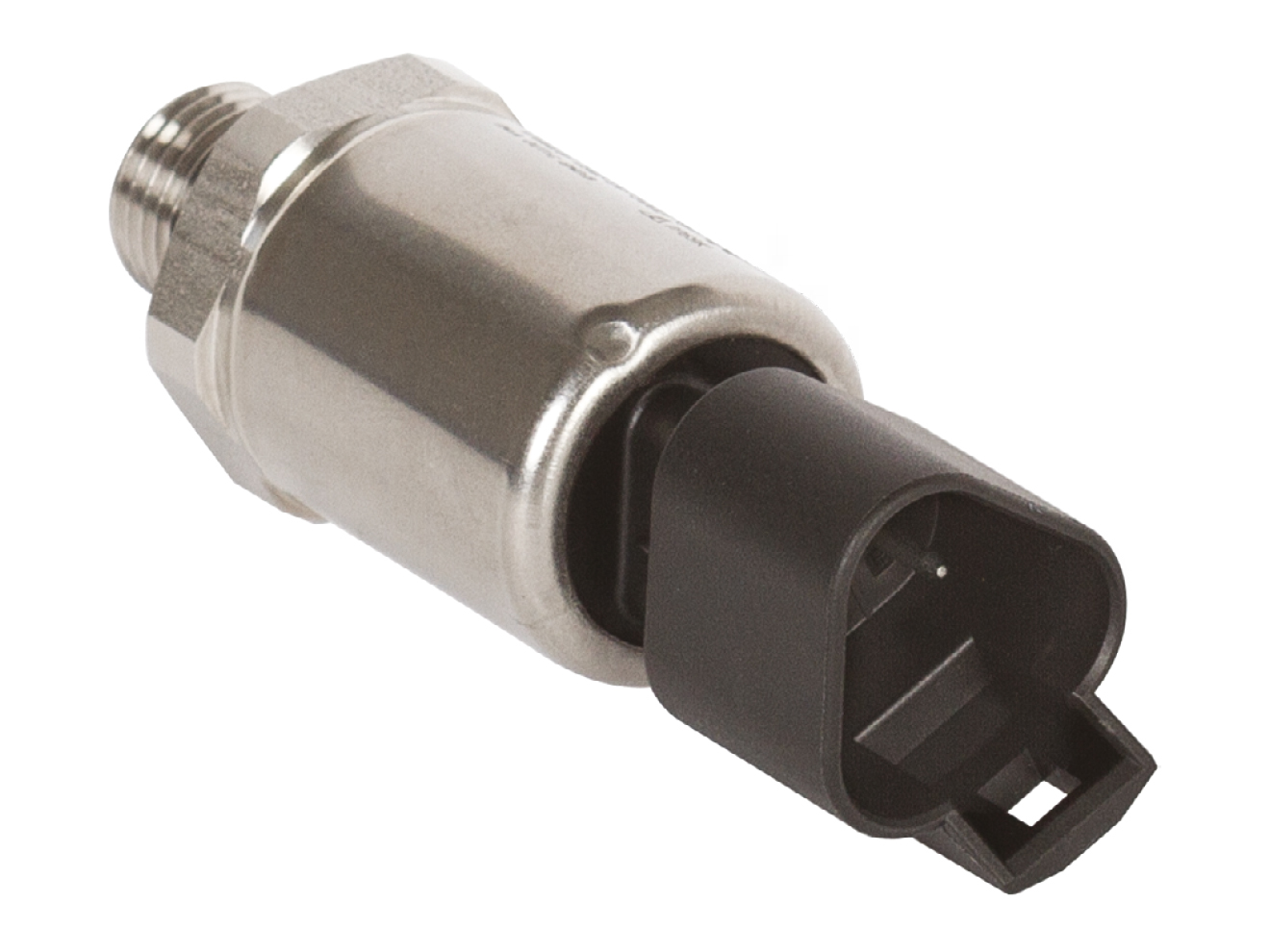

TURCK PT1100 Series Pressure Transmitter

Features

• Design: ceramic measuring cell
• Pressure range: -1 to 10 bar, -14.5 to 500 psig (depending on variant)
  • vac, compound, relative ranges
• Accuracy: ± 0.3% full scale
• Operating voltage:
  • I2: 7.5 to 33 VDC
  • U3: 7 to 33 VDC
  • U6: 5 VDC regulated
• Response time: < 2ms, typ. 1 ms
• Short Circuit / Reverse Polarity Protection
• Medium temperature: −40 to 125°C
• Materials:
  • Housing:
    • Stainless steel (1.4404) / AISI 316 L, Polyarylamide 50% Gf UL 94 V-0
  • Wetted: Stainless steel (1.4404) / AISI 316 L, FPM, AL203 ceramic
• Process connections: NPT, G (BSPP)
• Protection rating: IP69K / III
• Interference immunity / emission:
  • EN 61326-2-3 (pressure transducer)
  • ISO 13766
  • DIN EN 13309
  • DIN ISO 14982
  • CISPR11
• Immunity motor vehicle directive:
  • ISO 11452-2, HF (Field), 100 V/m (200 to 2000 MHz)
  • ISO 11452-4, HF (BCI), 100 mA (20 to 400 MHz)
  • ISO 10605, ESD, ±15 kV contact, ±15 kV air
  • ISO 7637-2 3), pulses 1, 2a, 2b, 3a, 3b (test level 4)
  • ISO 16750-2, load dump, 155 V (1 Ω, 300 ms)
  • Motor vehicle directive ECE R10
  • Motor vehicle directive 2004/104/EC
