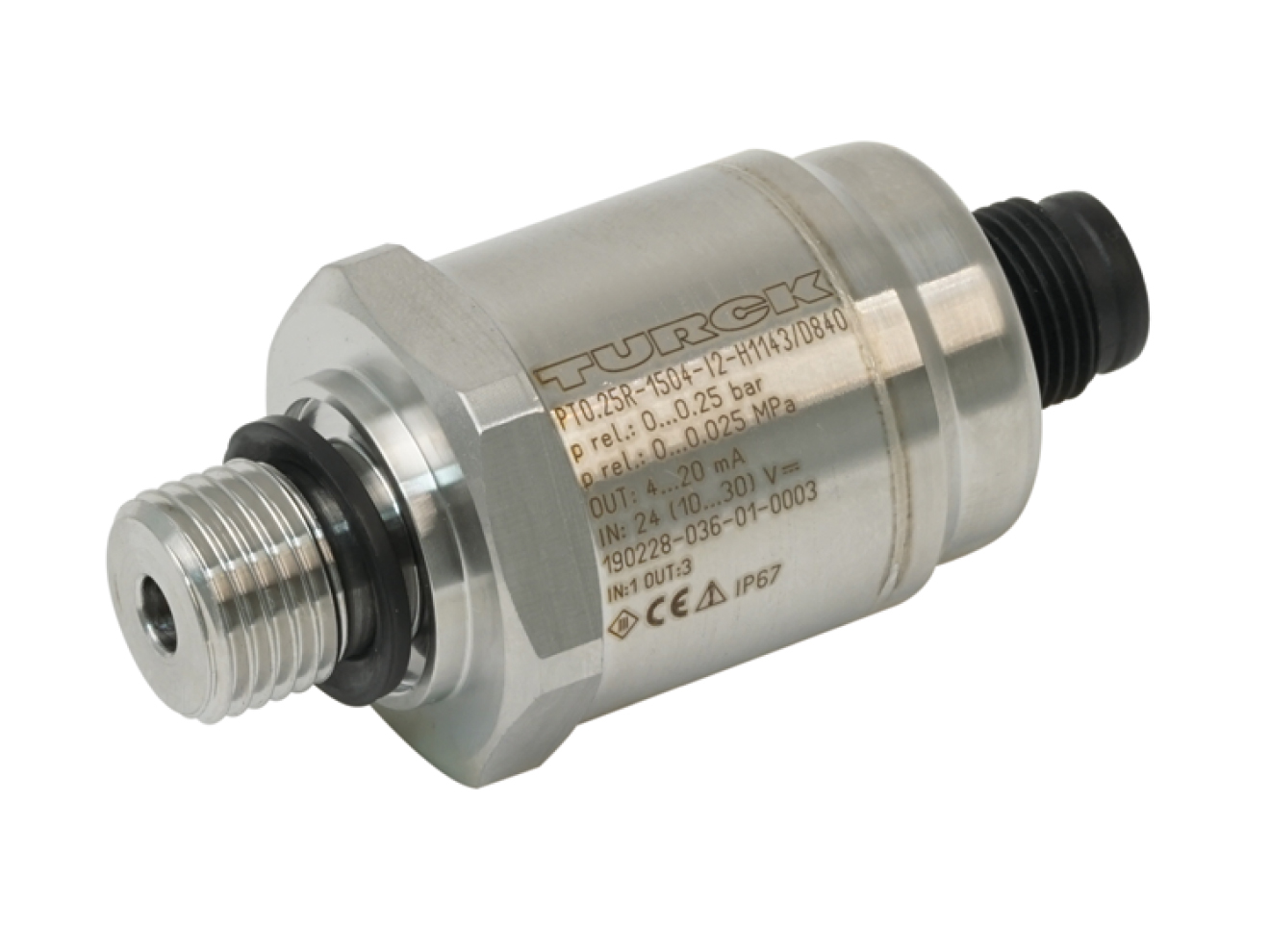

TURCK PT1500 Series Low Pressure Transmitter
Low pressure rated transmitter with vacuum, compound, and relative measurements from -0.1 up to 0.6 bar, or -1 up to 10 psi.
Overview
Features
- Vac, compound, relative pressure ranges
- Accuracy: ± 0.35% or ± 0.7% Full scale (dependant on variant)
- Operating voltage:
- I2 / U3: 7 to 33 VDC
- U1: 12 to 33 VDC
- U6: 5 VDC regulated
- Response time: < 150 ms
- Short Circuit / Reverse Polarity Protection
- Medium temperature: −25 to 85°C
- Materials:
- Housing: Stainless steel/Plastic, 1.4404 (316L)/ Polyarylamide 50%
- Process connection: Stainless steel 1.4404 (AISI 316L)
- Seal:
- EPDM
- NBR
- FPM
- Process connections: NPT, G (BSPP)
- Protection rating: IP67 / III
Description
The TURCK PT1500 Series Low Pressure Transmitter is designed for reliable measurement of vacuum, compound, and relative low pressure ranges from -0.1 up to 0.6 bar, or -1 up to 10 psi (depending on variant) in liquid level applications. The durable stainless steel housing, and ceramic measuring cell ensures durability across demanding industrial applications.
