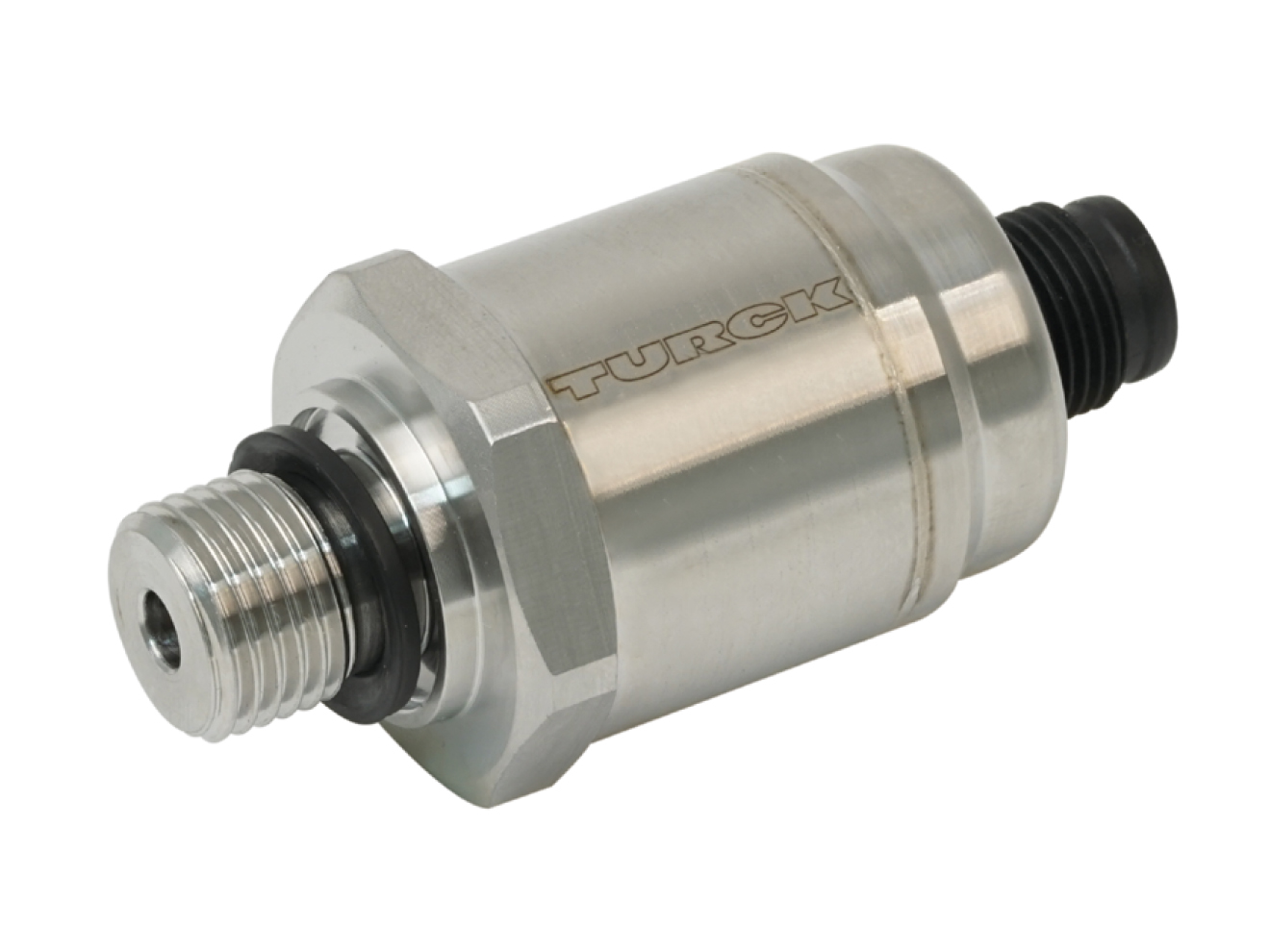

TURCK PT1000 / 2000 Series Pressure Switch
Programmable pressure sensor with up to 400 bar range and IO-Link protocol. Ceramic and stainless steel measuring cells with high IP protection class.
Overview
Features
- Design:
- Ceramic measuring cell
- Stainless steel measuring cell
- Outputs: 2x NO/NC, PNP/NPN switching outputs
- Accuracy: ± 0.3% full scale
- Operating voltage: 11 to 33 VDC
- Output: IO-Link process data, 2x configurable switching outputs
- Switching current: 100mA
- Response time: < 2 ms, typ. 1 ms
- Short Circuit / Reverse Polarity Protection
- Communication protocol: IO-Link V1.1
- Programming: FDT/DTM
- Medium temperature:
- 1000 variant: −40 to 125°C
- 2000 variant: −40 to 135°C
- Materials:
- Housing: Stainless steel/plastic, 1.4404 (316L)/ polyarylamide 50% GF UL 94 V-0
- Process connection: 316L stainless steel
- Wetted: (1000) Ceramic AI2O3, FPM, (2000) 316L stainless steel
- Protection rating: IP67 / III
Description
The TURCK PT1000 / 2000 Series Pressure Switch is ideal for controlling pressure in various industrial environments with up to a 0 to 400 bar range (5800 psig). The two independently configurable switching outputs are adjustable via IO-Link. The IO-Link connection can also be utilized to provide diagnostic data: over/under pressure, short circuit, supply voltage, temperature, device fault, operating hours, and high/low applied pressure. The stainless steel housings are durable in nature, with selectable materials for the measuring cell between ceramic and stainless steel, depending on the measurement range required.
