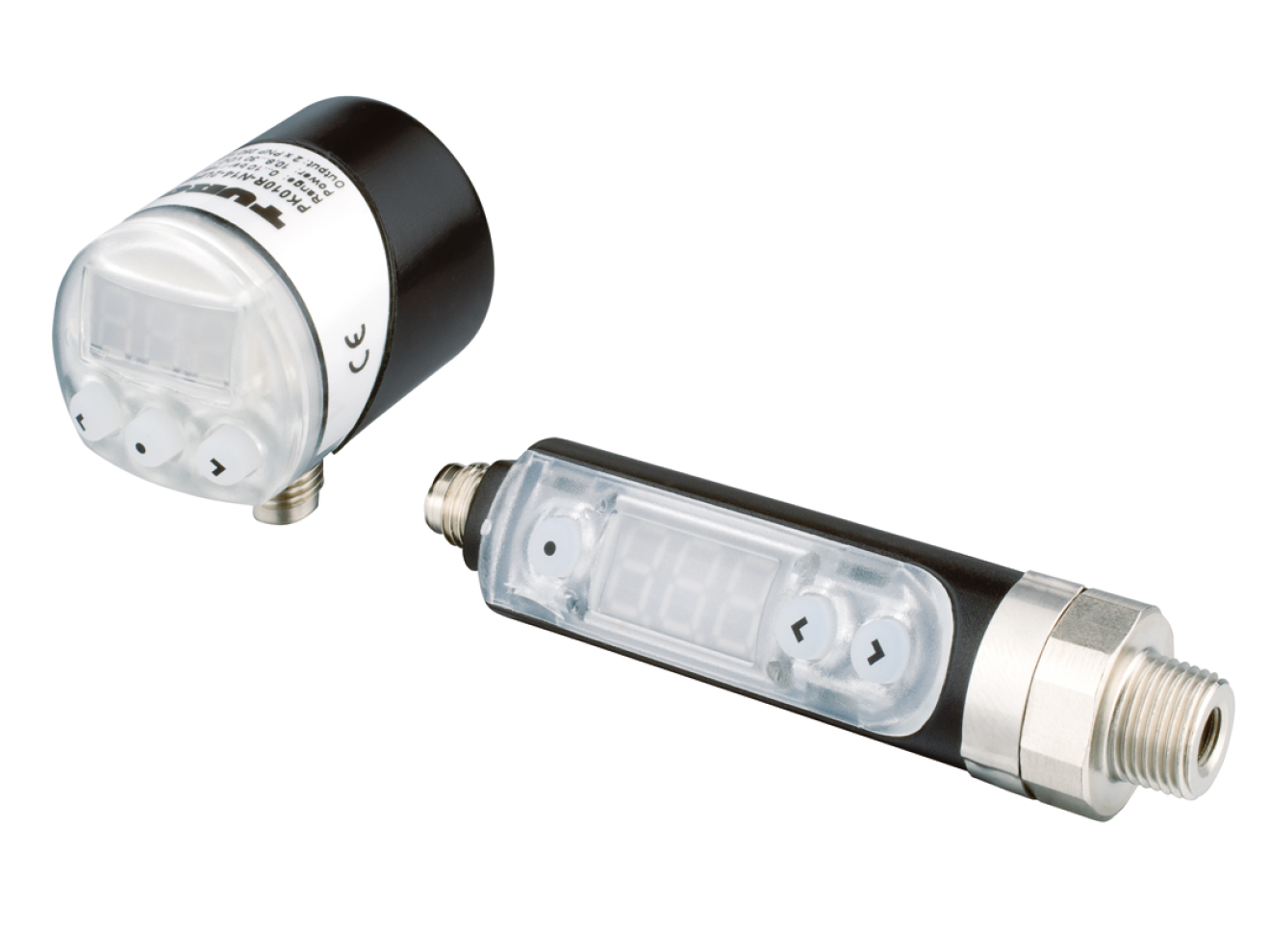

TURCK PK Series Programmable Pressure Sensor
Programmable sensor for pneumatic applications.-1 to 0 or 0 to 10 bar ranges, 2 PNP programmable outputs, 3 digit display.
Overview
Features
- Pressure range: −1 to 0 bar, 0 to 10 bar
- Output type: 2X PNP
- Process connection: NPT1/8
- Electrical connection: M8x1 Picofast
- Setpoint accuracy: ≤ ± 1% full scale
- Switch point: 0 to 100% measuring range
- Repeatability: 0.02% full scale
- Operating voltage: 10.8 to 30 VDC
- Switching frequency: ≤ 400 Hz
- Response time: < 2.5 ms
- Medium temperature: 0 to 50°C
- Materials:
- Housing: Pico - ABS, Plastic; Nano - AL, PVC
- Wetted: Silicone, ABS, AL, Nickle plated brass
- 3-digit 7-segment display
- Protection rating: IP65
- For pneumatic applications only
Description
The TURCK PK Series Programmable Pressure Sensor is fully programmable sensor with local display, and 2x PNP outputs. These sensors are an economical solution for pneumatic applications, with a pressure rating up to 10bar.
