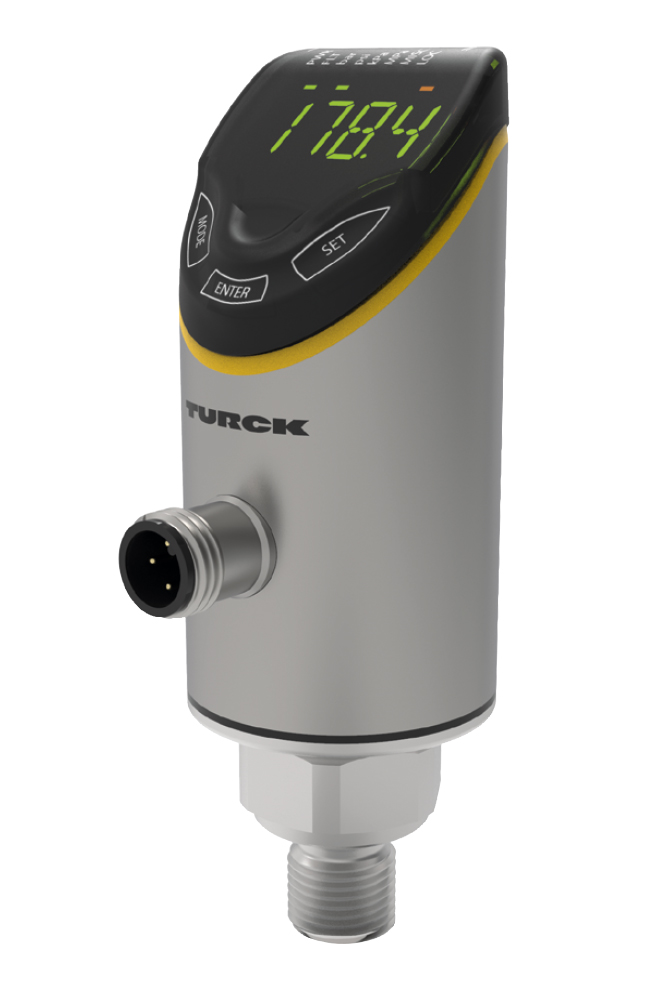

TURCK PS+ Series Programmable Pressure Sensor
Programmable sensor with up to 600 bar range, absolute variants available. Ceramic and stainless steel measuring cells with high IP protection class.
Overview
Features
- Pressure range:
- Ceramic measuring cell: up to 10bar
- Stainless steel measuring cell: up to 600bar
- Accuracy: up to 0.25%
- Programmable Output:
- 2UPN8: 2X PNP/NPN N.O./N.C
- LI2UPN8: 4 to 20 mA, 0 to 20 mA, 0 to 10 V, 1 to 6 V, 0 to 5 V, 0.5 to 4.5 V and 1X PNP/NPN N.O./N.C or 2X PNP/NPN N.O./N.C
- Analog Accuracy (including LHR):
- PS310: +/- 0.5% Full Scale
- PS510: ± 0.25% full scale
- Set Point Accuracy:
- PS310: +/- 0.5% Full Scale
- PS510: ± 0.25% full scale
- Set Point Range: (min + 0.005 x range) up to 100% of full scale
- Operating Voltage: 18 to 30 VDC
- Switching Current: ≤ 250 mA
- Switching Frequency: ≤ 300 Hz
- Response Time: ≤ 500 ms
- Medium temperature: −30 to 80 °C
- Materials:
- Housing: 316L Stainless Steel/Polyarylamide 50%GF UL 94-V-0
- Wetted: (PS310) 316L Stainless Steel/AL2O3/FKM (PS510) 316L / 17-4 Stainless Steel
- Communication protocol: IO-Link V1.1
- Automatic signal detection
- Up to seven-fold overpressure resistance
- Short circuit / reverse polarity protection
- 180° invertible multi-color display
- Rotatable sensor body
- Protection rating: IP6K6K, IP6K7, IP6K9K
Description
The TURCK PS+ Series Programmable Pressure Sensor is a fully programmable with a multi-color display, IO-Link communication, as well as electrical outputs for providing critical feedback to control systems. Ceramic measuring cells (PS310) are rated for up to 10 bar, stainless steel variants (PS510) up to 600 bar. These pressure ranges can be programmed and displayed in PSI, Kpa, Mpa, and additional user defined ranges. Additional pressure ranges and process connections are available upon request. This sensor line is the replacement for TURCK's PS Series pressure sensors.
