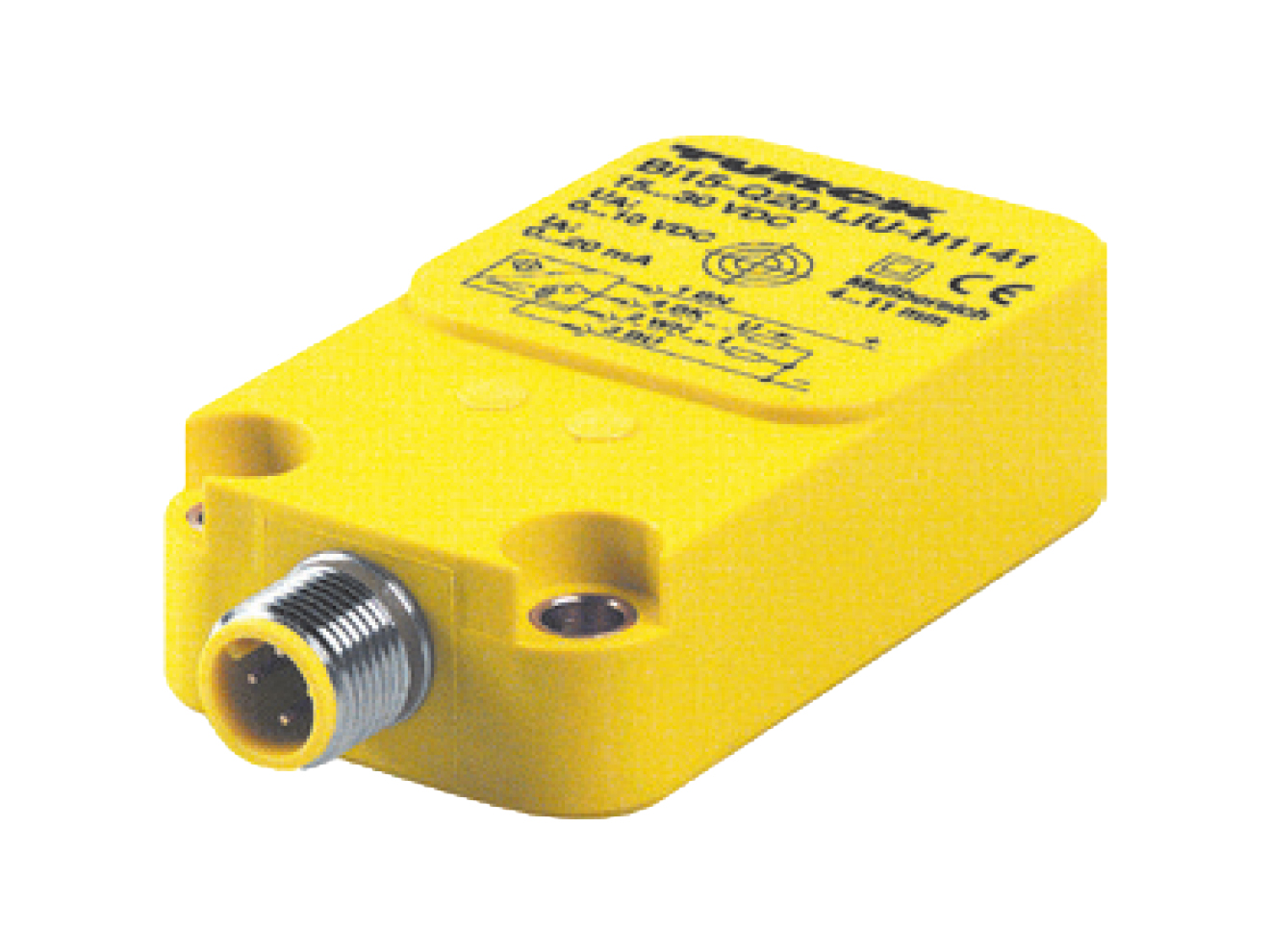

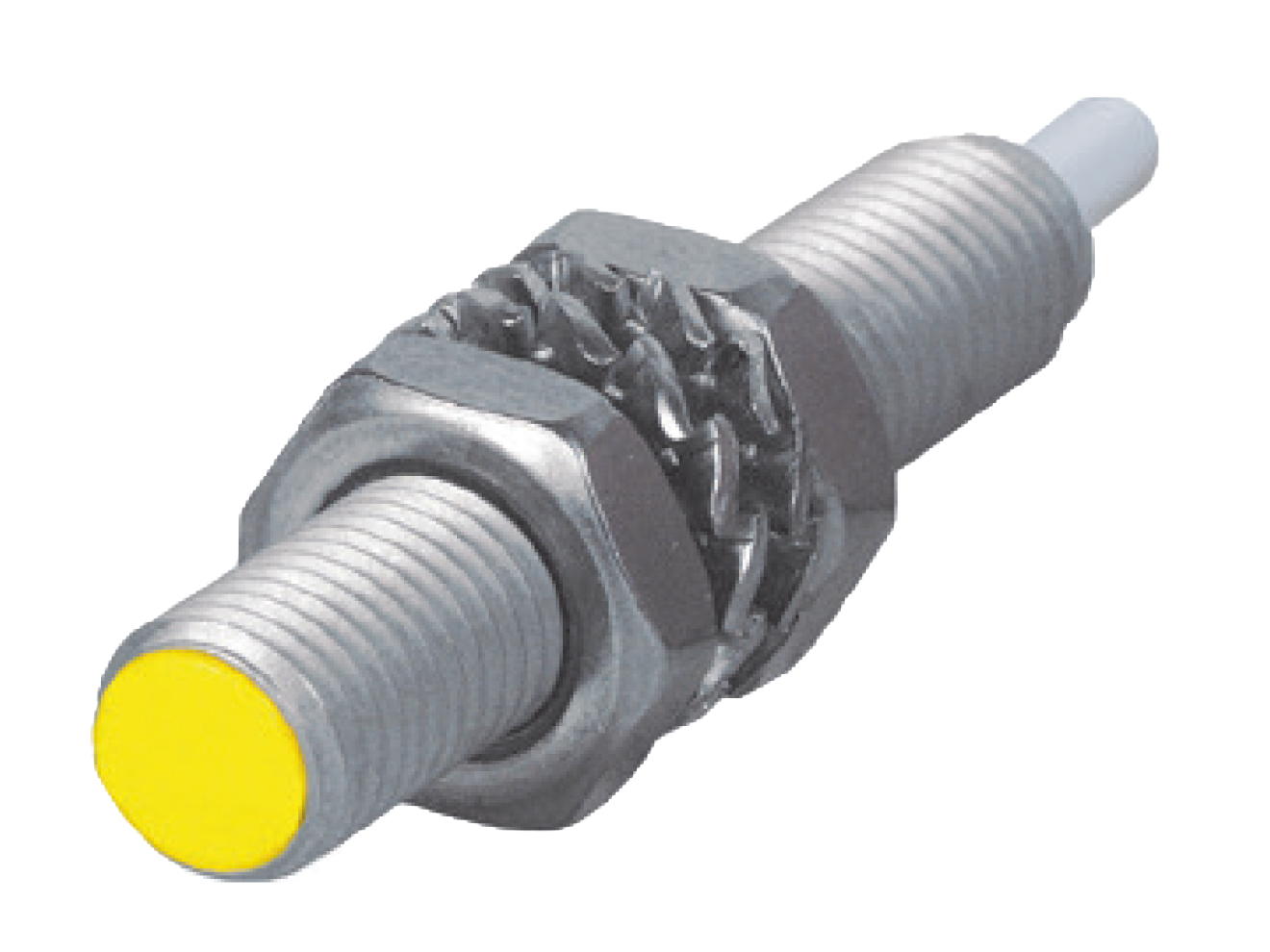

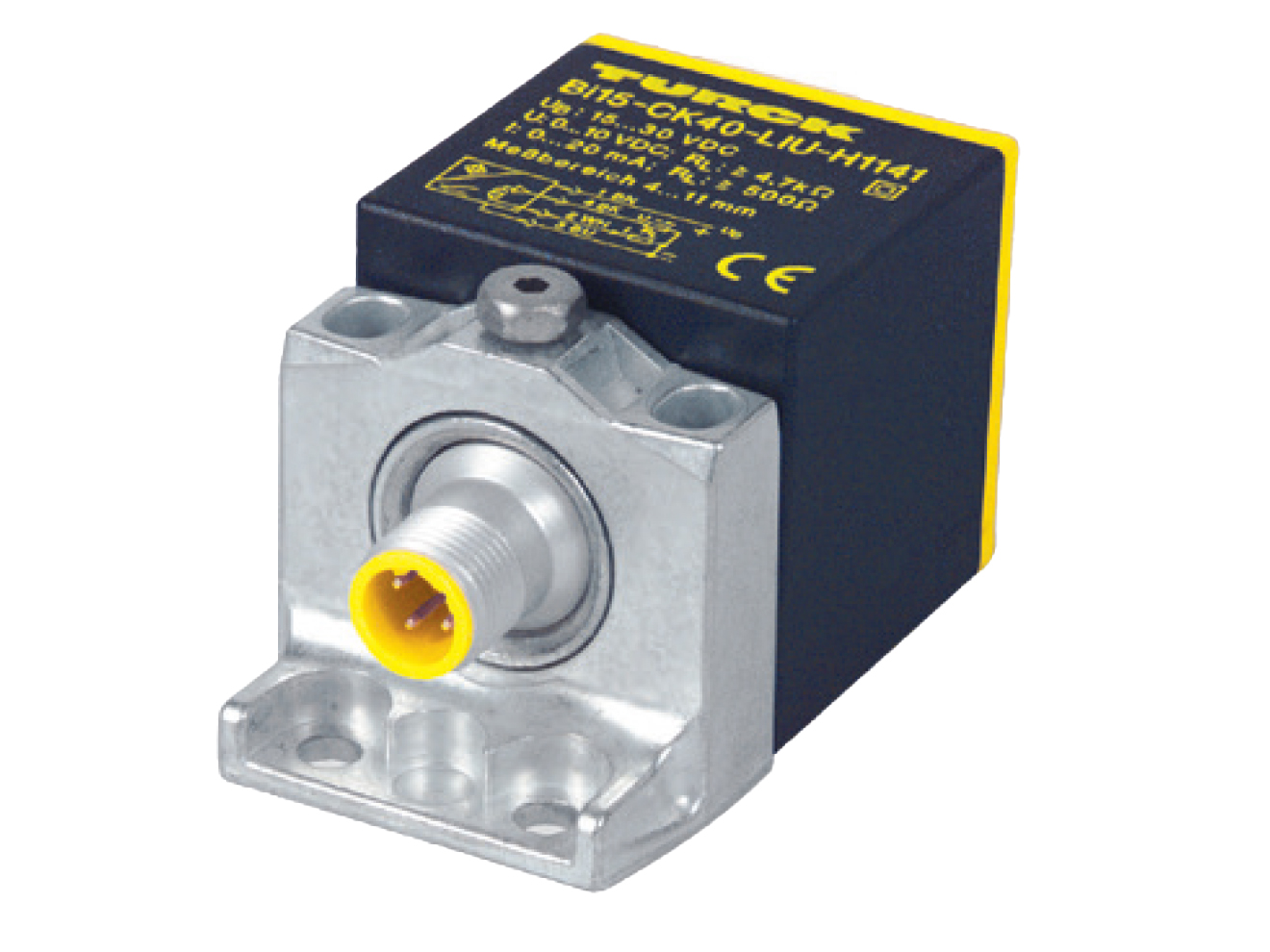

TURCK Analog Series Inductive Sensor

Linear analog inductive sensor in flush and non-flush designs. Up to 50 mm rated switching distances, current and voltage output with -25 to 70°C operating range.

Starting at $245.50
This model has 41 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Operating principle: inductive
  • Switching distance: 1.5 to 50 mm
    • *Additional operating distances may be available upon request
  • Output: 4-wire current and voltage
  • Additional options available upon request
  • Mount type:
    • BI: flush
    • NI: non-flush
  • Voltage: 15 to 30 VDC
  • Connector options:
    • Eurofast
    • Picofast
    • Potted cable
    • *See catalog (pg. 304) for selection guides defining appended connector part numbers and cable lengths
  • Protective rating: IP67
  • IP68/69K variants available
  • Ambient temperature range: -25 to 70°C

The TURCK Analog Series Inductive Sensor Turck are a line of proximity sensors with shielded coil (BI) and nonshielded coil configurations(NI). Shielded variants are able to be safely flush-mounted in metal, whereas nonshielded variants are non-flush, whose sensing face requires a metal free area. Rated switching distances range up to 50 mm, with additional features including plastic or metal housing selections. These analog sensors are ideally equipped for a range of application tasks, including but not limited to: position feeding; eccentricity sensing or absolute angle positioning; direct actuation; part deflection; identification/sorting of small components; thickness measurement.

*Select configurations may include appended cable or connector codes (e.g., V1141, 0.2-RS4T, 10M), or customized feature codes (e.g., /S****, /F****, /C****). To determine which of these special options may be the best solution, reference the datasheet found on the specific part number's landing page, under the Documents tab. Contact a TMMI engineer if further clarification is needed.
