TURCK Specialty Series Inductive Sensor

Specialty inductive sensors including slot style, limit switches, ring and high pressure rated sensors. NPN, PNP and 2-wire output options with extensive connector variants.

Starting at $87.40
This model has 353 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Operating principle: inductive
  • Switching distance: 1 to 75 mm
  • Outputs:
    • 2-wire DC
    • 2-wire AC/DC, (power MOSFET output)
    • NPN transistor (current sinking)
    • PNP transistor (current sourcing)
    • 2-wire AC or 2-wire AC/DC
    • High current solid state relay
  • Thread sizes:
    • M5 x 0.5
    • M8 x 1
    • M12 x 1
    • M18 x 1
    • M30 x 1.5
    • PG 9
    • PG 13.5
    • PG 36
    • Additional options available upon request
  • Mount type:
    • BI: flush
    • NI: non-flush
  • Voltage: AC/DC (latched SCP and none), DC
  • Connector options:
    • Eurofast
    • Minifast
    • Microfast
    • Pentafast
    • Picofast
    • Pigtail cable
  • *See catalog (pg. 70) for selection guides defining appended connector part numbers and cable lengths
  • Additional offerings:
    • Uprox sensor technology
    • High pressure sensor
    • LED indicators
    • PTFE barrel coating
  • Protective rating: IP67
    • IP68/69K variants available
  • Ambient temperature range: -30 to 85°C
    • Extended ranges available down to -40°C and up to 120°C upon request

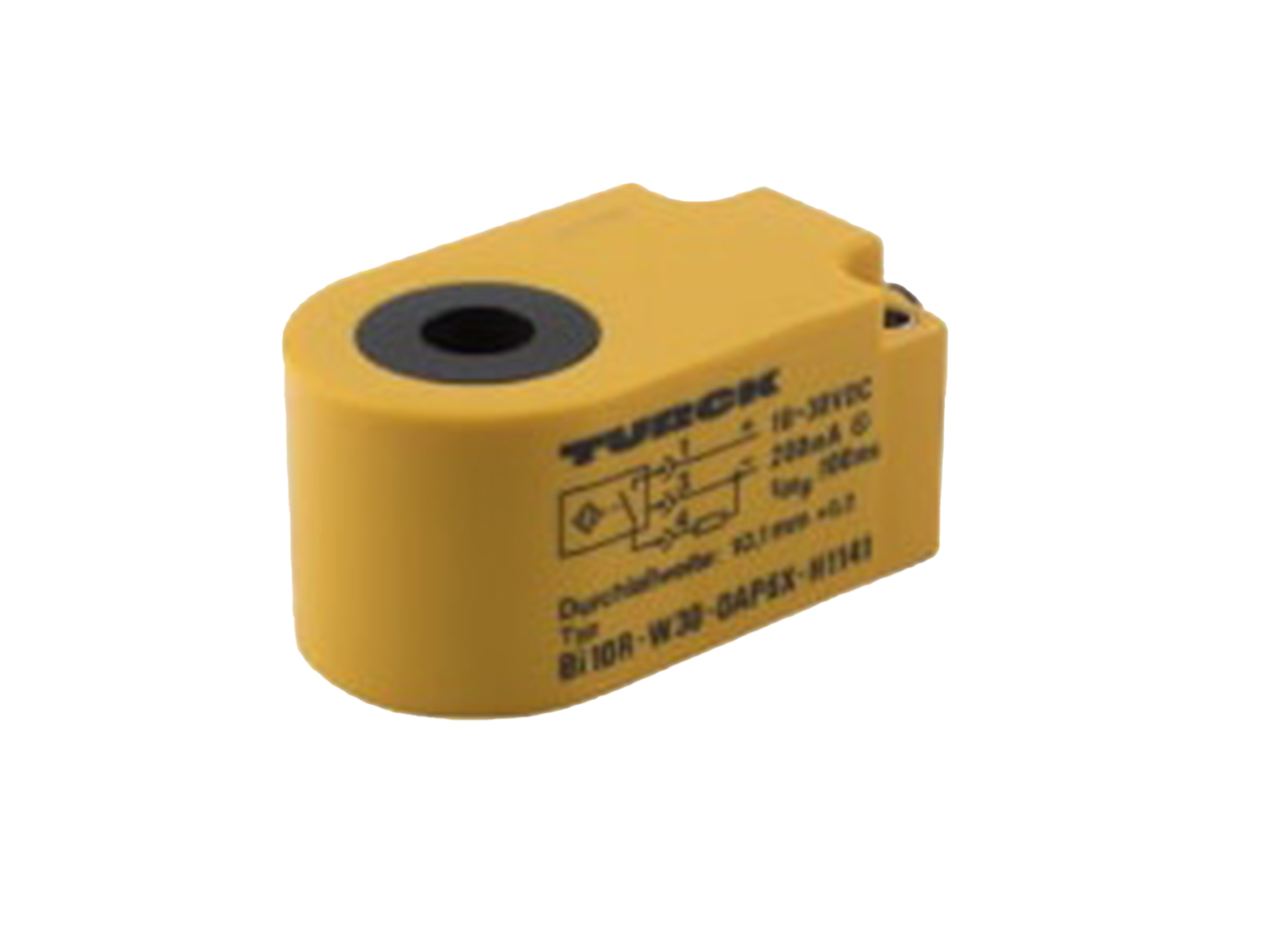

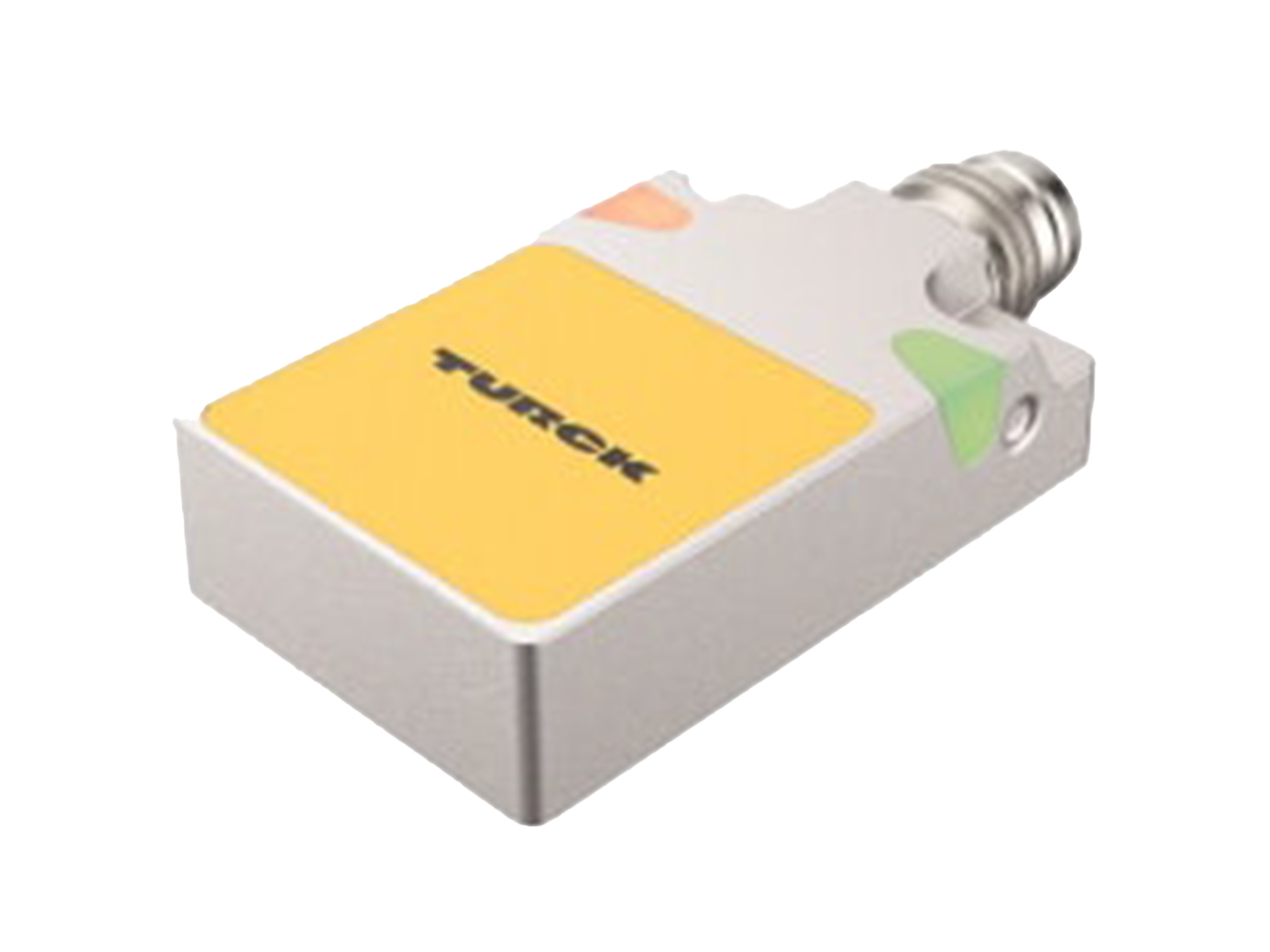

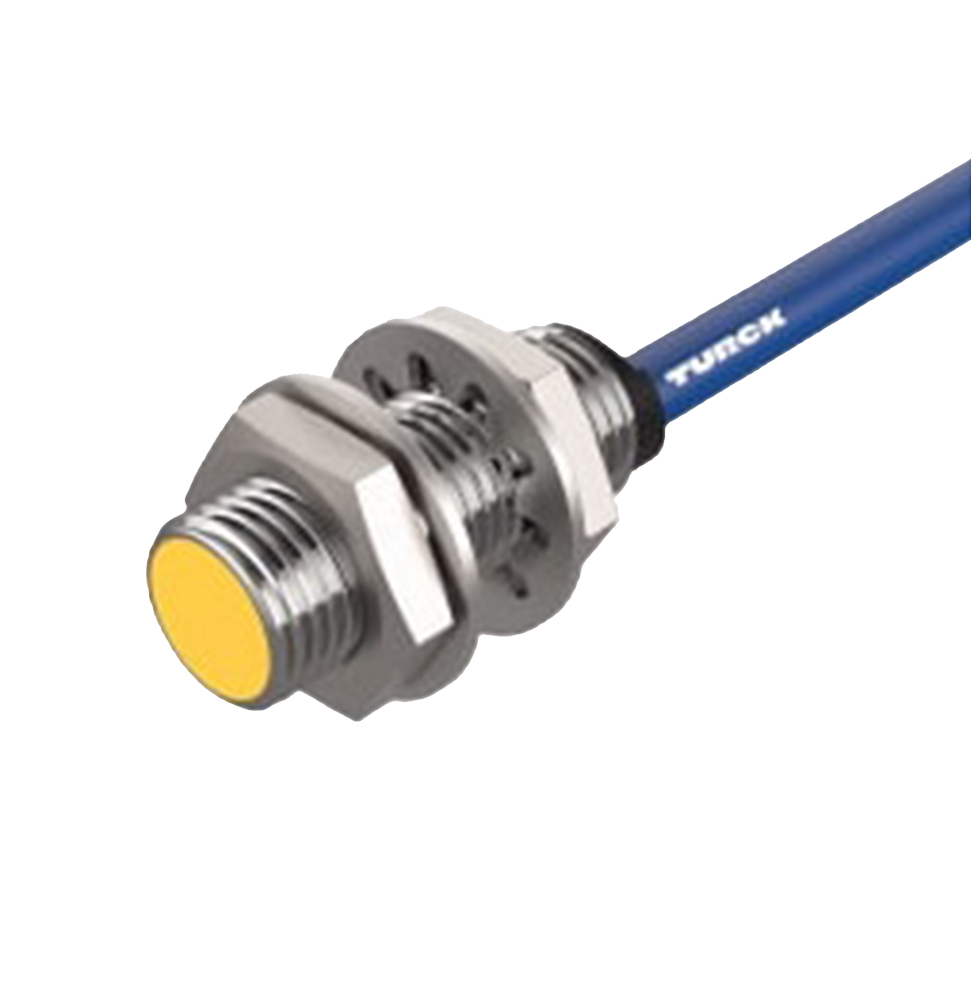

The TURCK Specialty Series Inductive Sensor includes specialty variants such as high pressure rated sensors, ring sensors, slot sensors, limit switches, highly compact as well as extended barrel lengths. These proximity sensors feature shielded coil (BI) and nonshielded coil configurations(NI). Shielded variants are able to be safely flush-mounted in metal, whereas nonshielded variants are non-flush, whose sensing face requires a metal free area. Rated switching distances range from 1 to 75 mm, with highly configurable features across outputs and voltage range, with additional features including Uprox sensor technology, PTFE barrel coating, as well as plastic or metal housing selections.

Select configurations may include appended cable or connector codes (e.g., V1141, 0.2-RS4T, 10M), or customized feature codes (e.g., /S****, /F****, /C****). To determine which of these special options may be the best solution, reference the datasheet found on the specific part number's landing page, under the Documents tab. Contact a TMMI engineer if further clarification is needed.
