TURCK Threaded Barrel Series Inductive Sensor

Threaded barrel inductive sensor in flush and non-flush designs. 1 to 100 mm rated switching distances, NPN, PNP and 2-wire output options with extensive connector variants.

Starting at $95.70
This model has 2942 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Operating principle: inductive
  • Switching distance: 1 to 100 mm
  • Outputs:
    • 2-wire DC (transistor output)
    • 2-wire AC/DC, (power MOSFET output)
    • 2-wire DC, low voltage drop
    • NPN transistor (current sinking)
    • PNP transistor (current sourcing)
    • 2-wire AC or 2-wire AC/DC
  • Thread sizes:
    • M5 x 0.5
    • M8 x 1
    • M12 x 1
    • M18 x 1
    • M30 x 1.5
    • PG 9
    • PG 13.5
    • PG 36
    • Additional options available upon request
  • Mount type:
    • BI: flush
    • NI: non-flush
  • Voltage: AC/DC (latched SCP and none), DC
  • Connector options:
    • Eurofast
    • Deutsch
    • Minifast
    • Microfast
    • Pentafast
    • Picofast
    • Pigtail cable
    • *See catalog (pg. 70) for selection guides defining appended connector part numbers and cable lengths
  • Materials:
    • Barrel: metal, plastic
  • Cable lengths: 0 to 50 m
    • Additional lengths may be available upon request
  • Additional offerings:
    • Uprox sensor technology
    • LED indicators
    • PTFE barrel coating
    • Extended operating temperature range
  • Protective rating: IP67
    • IP68/69K variants available
  • Ambient temperature range: -30 to 85°C
    • Extended ranges available down to -40°C and up to 120°C upon request

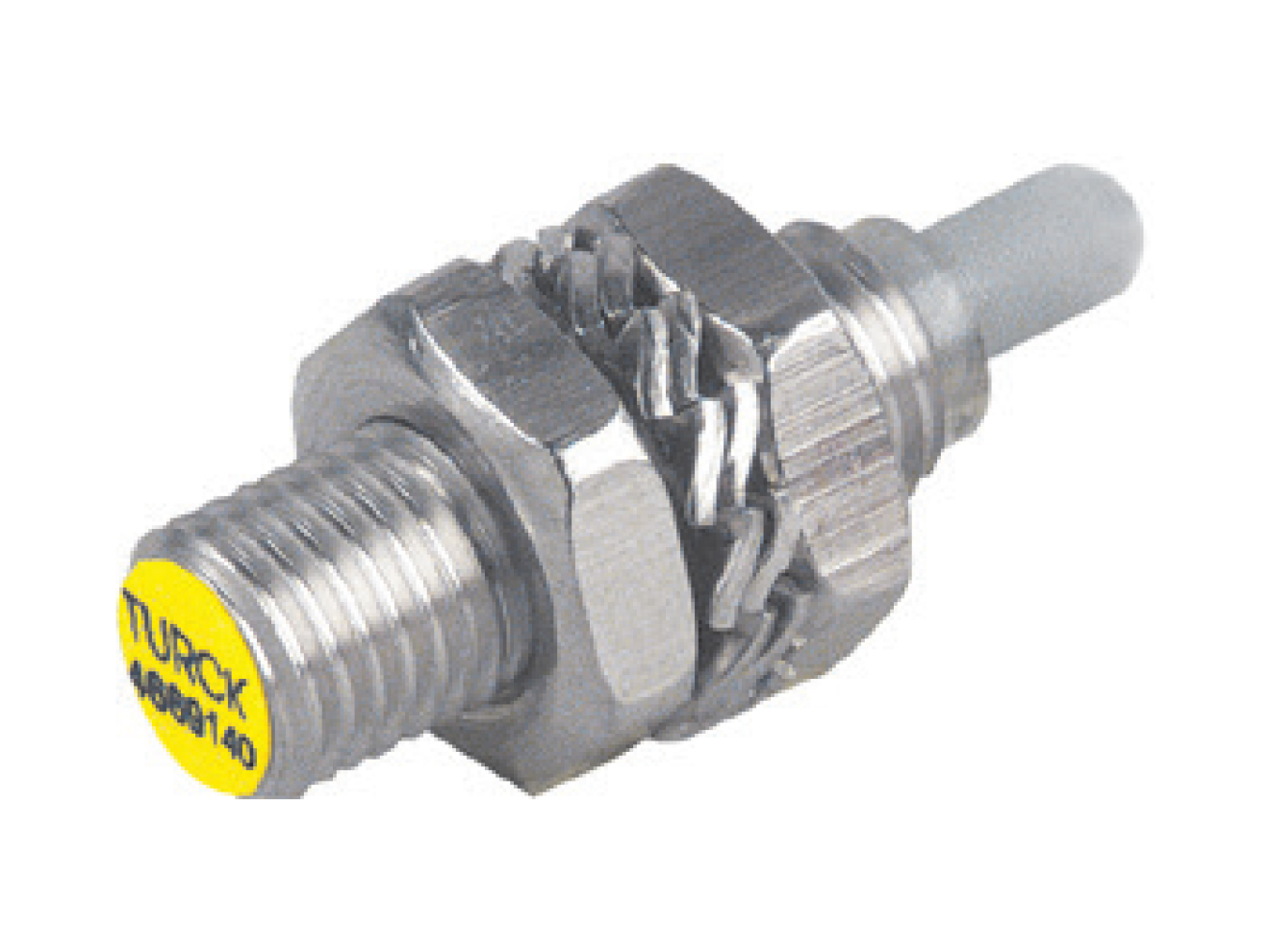

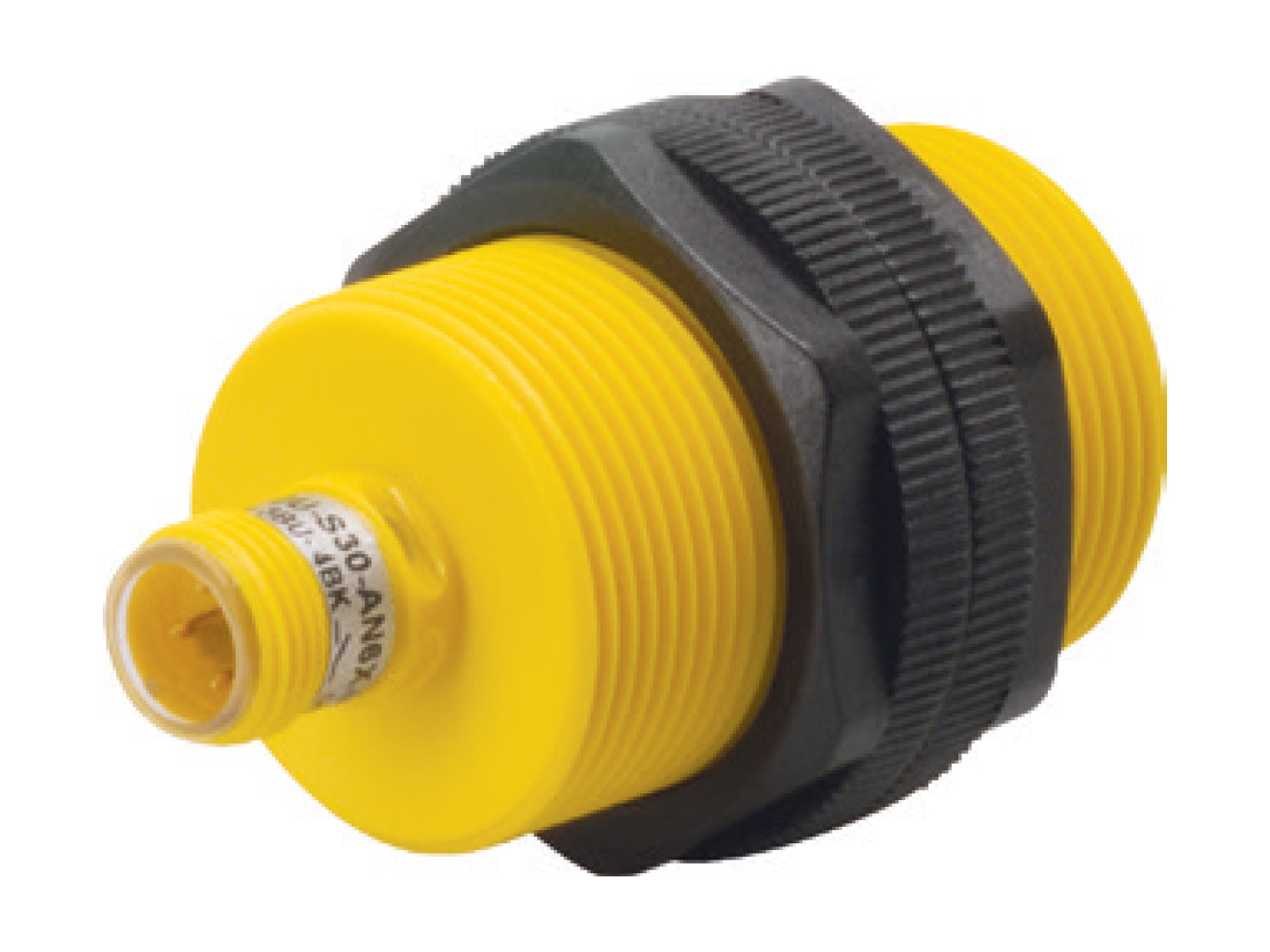

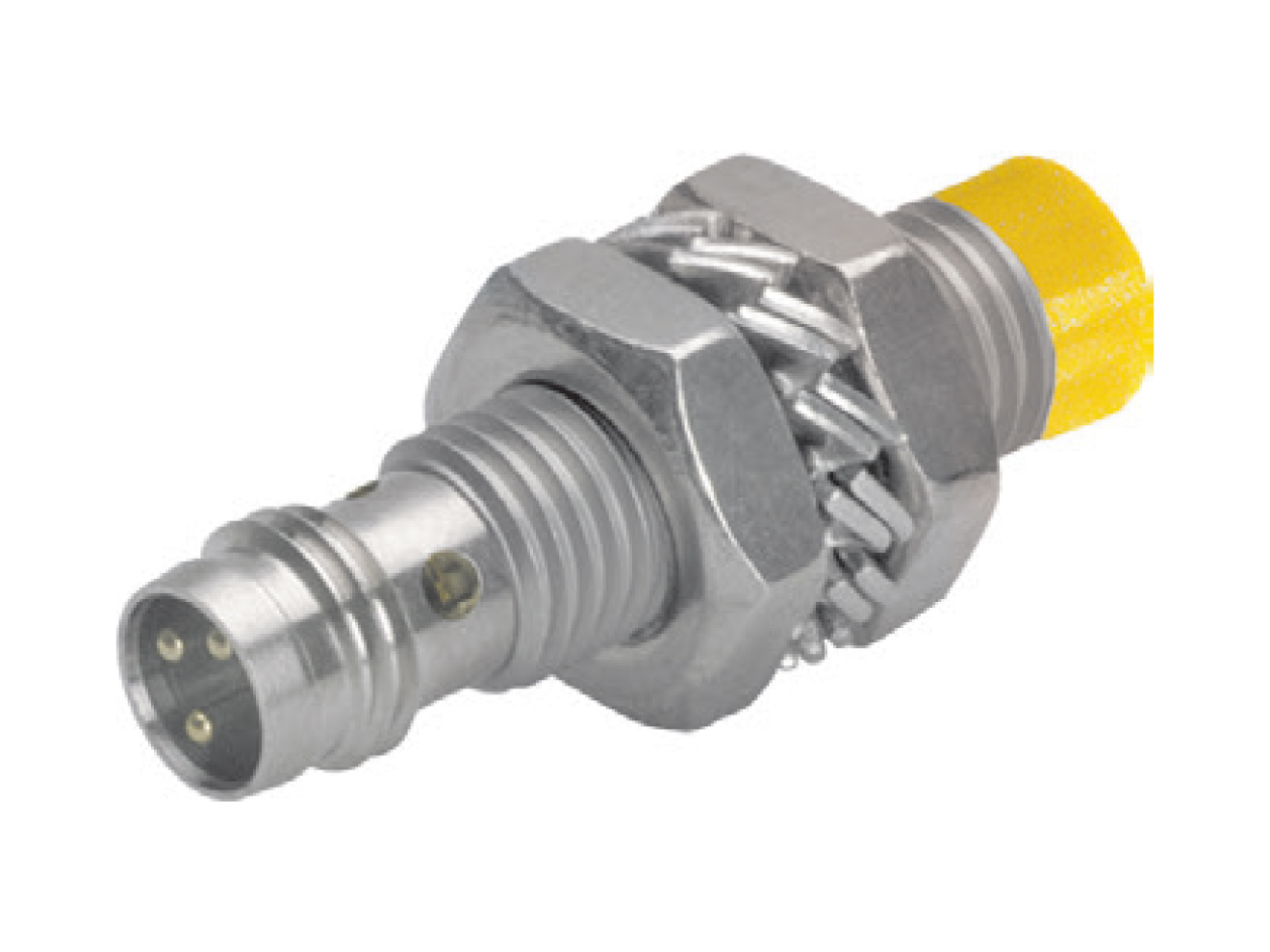

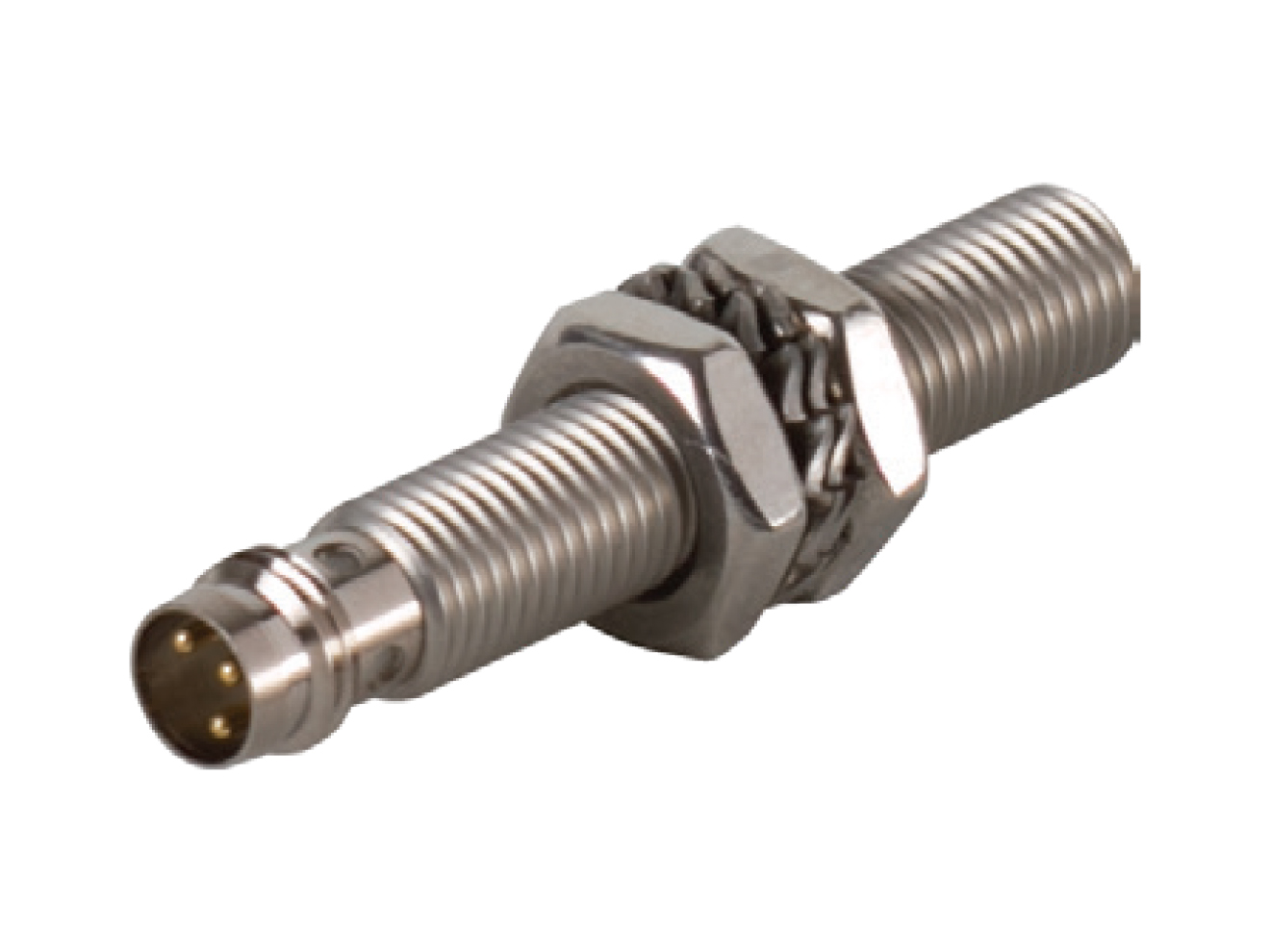

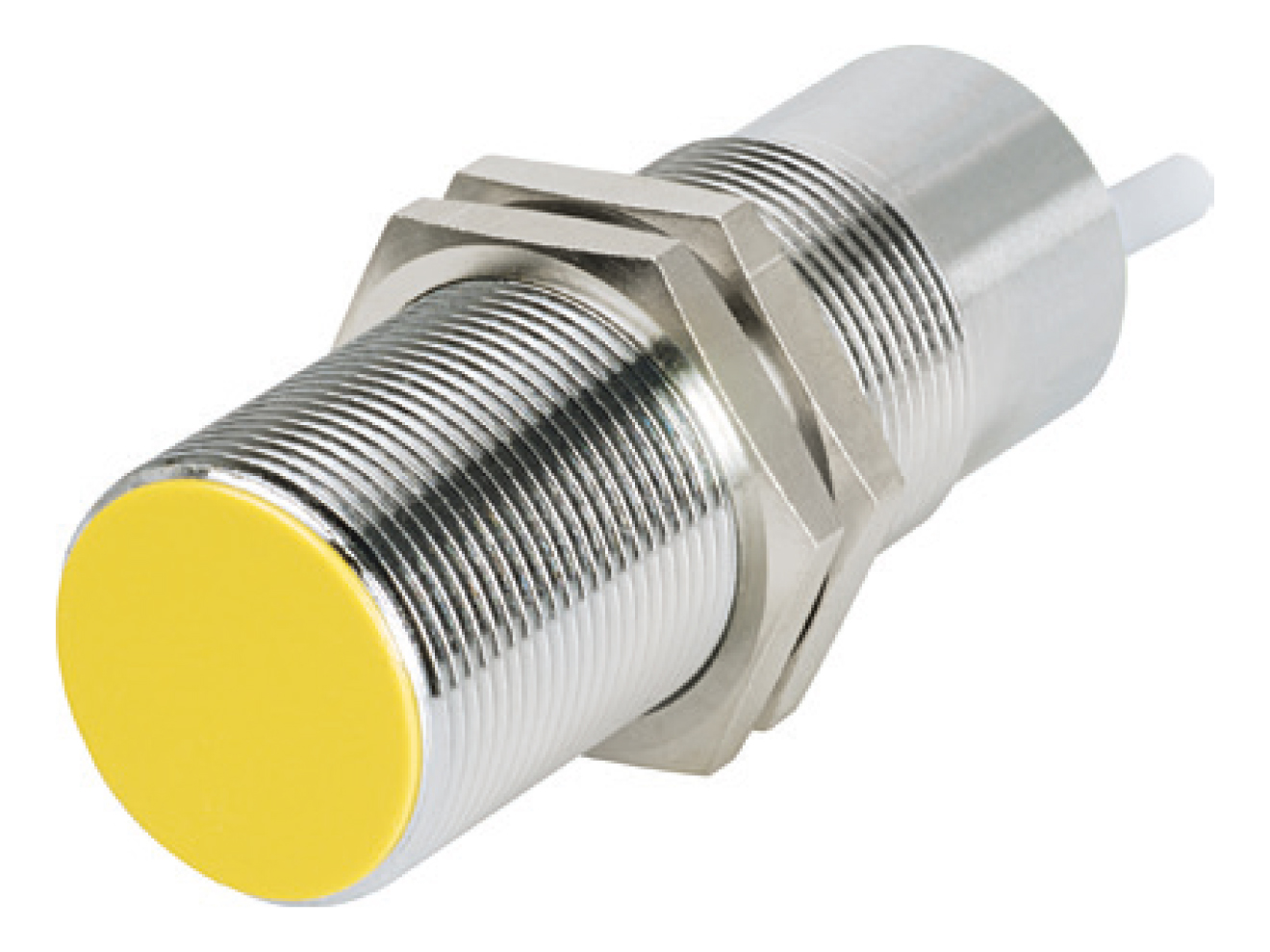

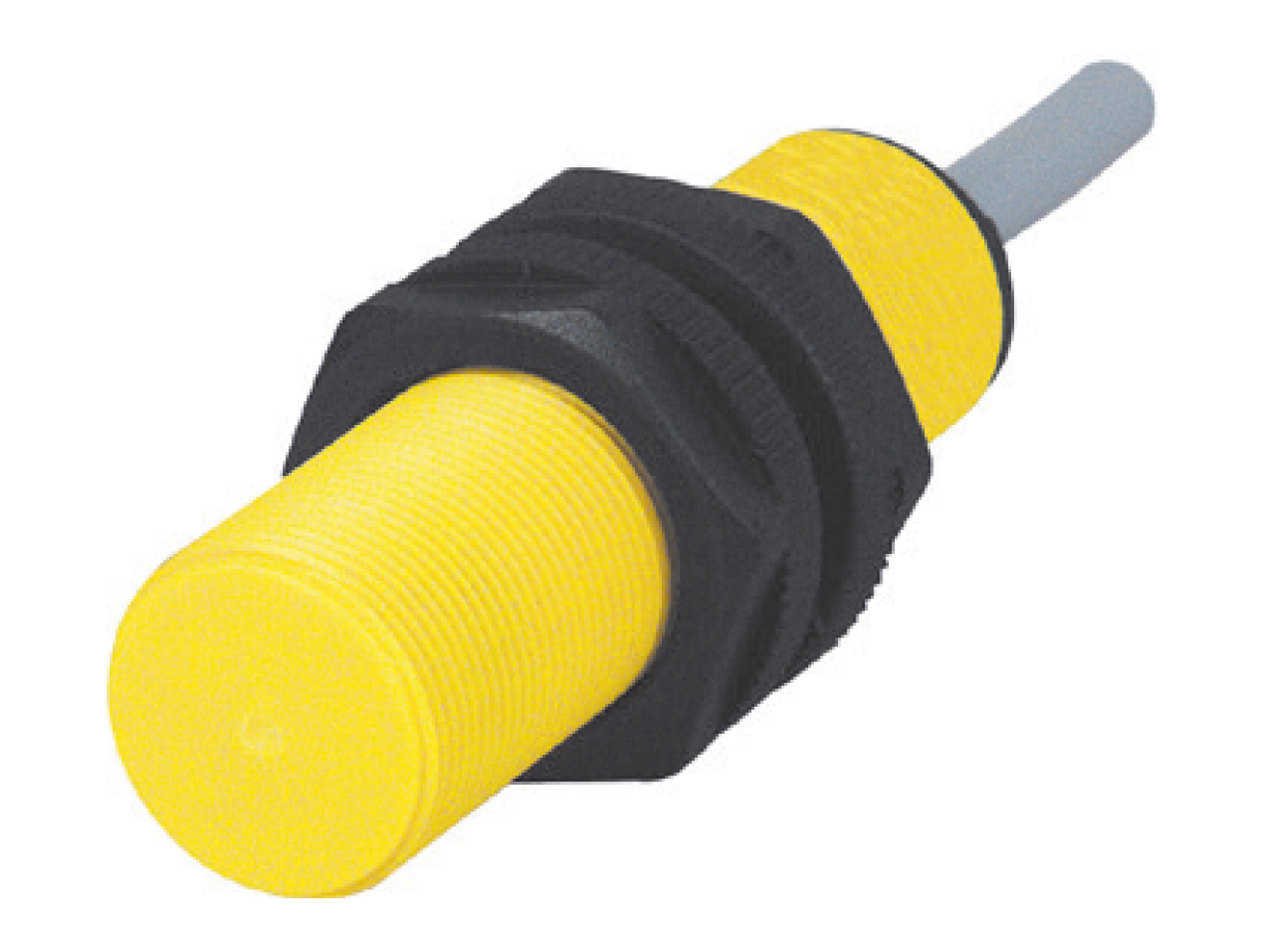

The TURCK Threaded Barrel Series Inductive Sensor Turck are a line of proximity sensors with shielded coil (BI) and nonshielded coil configurations(NI). Shielded variants are able to be safely flush-mounted in metal, whereas nonshielded variants are non-flush, whose sensing face requires a metal free area. Rated switching distances range from 1 to 100 mm, with highly configurable features across outputs and voltage range, with additional features including Uprox sensor technology, PTFE barrel coating, as well as plastic or metal housing selections.

*Select configurations may include appended cable or connector codes (e.g., V1141, 0.2-RS4T, 10M), or customized feature codes (e.g., /S****, /F****, /C****). To determine which of these special options may be the best solution, reference the datasheet found on the specific part number's landing page, under the Documents tab. Contact a TMMI engineer if further clarification is needed.
