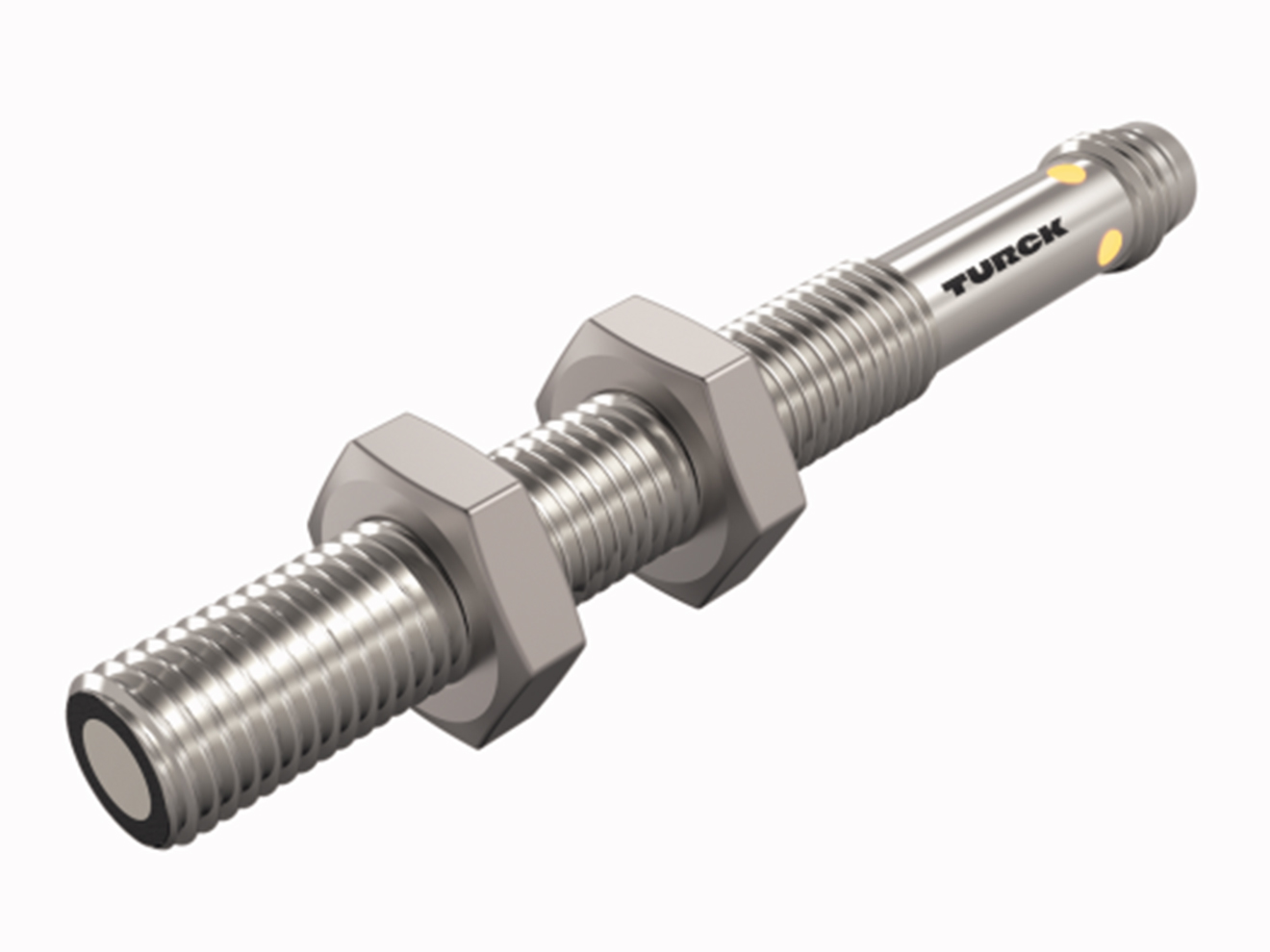

TURCK Miniature Series Ultrasonic Sensor

Compact ultrasonic sensor with front-facing transducer with up to 40 cm range. M8 and M12 connections, switching and analog outputs. IO-Link available.

Starting at $231.00
This model has 10 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Operating principle: proximity, retroreflective
  • Design:
    • M08: 8mm, M8x1 connection
    • M12: 12mm, M12x1 connection
  • Outputs: NPN, PNP, 0 to 10 V, 4 to 20 mA
  • Operating distance: 10 to 40 cm
  • IO-Link V1.1 option
  • Operating Voltage:
    • M08: 18 to 30 VDC
    • M12: 10 to 30 VDC (NPN/PNP outputs), 15 to 30 VDC (analog variants)
  • Continuous Switching Current: ≤150 mA
  • Repeatability: 0.15% of full scale
  • Short-Circuit / Reverse Polarity Protection
  • Ambient Temp:
    • M08: 0 to 50°C
    • M12: -10 to 60°C
  • Protection Rating: IP67
  • Materials:
    • Housing: Metal/CuZn/Nickel-plated
    • Transducer: Plastic, Epoxyd resin/PU foam

The TURCK Miniature Series Ultrasonic Sensor is a line of 8 and 12mm sensors designed for compact installation sites. Picofast M8 and Eurofast M12 connections available, with IP67 ingress protection ratings, with a fully encapsulated housing design. These sensors durable construction permit use in filling level tasks thanks to the 0.5 to 5 bar pressure rating. The front-flush transducer diaphragm is predominantly insensitive to contamination. IO-Link V1.1 communication is available, permitting the switching variant can also be used to directly measure via the process value output. The M12 design offers analog models with 0 to 10 V or 4 to 20 mA output.
